Контроллер Raid - SAS 9217-8i, PCI-E 3.0, 8 int 6Gb/s SATA +SAS Ports DL360 DL380

Серверный SAS\SATA RAID контроллер!!!

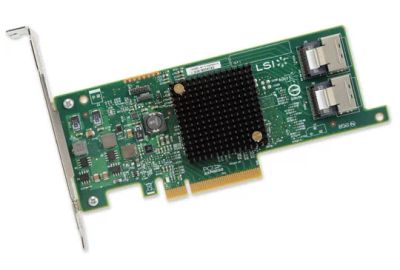

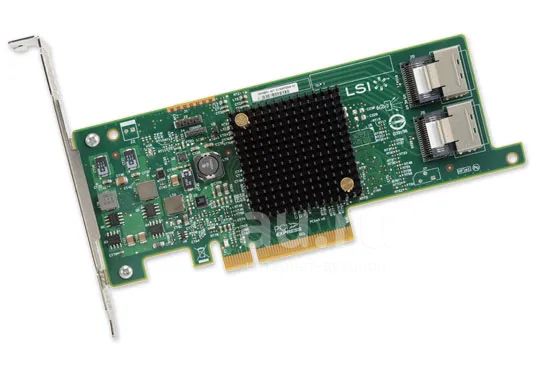

LSI SAS 9217-8i HOST BUS ADAPTER

IO Controller - LSISAS2308/ Fusion MPT 2.0

Storage Connectivity, Data Transfer Rates - 8 ports; 6Gb/s SAS 2.1 compliant

SAS Bandwidth - Half Duplex

600 MB/s per lane

Port Configurations - 8 ea, x1 ports (individual drives)-or-2 ea, x4 wide port

Host Bus - X8 lane, PCI Express 3.0 compliant

PCI Data Burst Transfer Rates - Half Duplex, X8, PCIe 8000 MB/s

Physical Dimensions - Low Profile (2. 6” x 6.6”)

Connectors - Two Mini-SAS internal connectors (SFF8087)

Brackets - Full height and low profile

Cable Support - Passive Copper

Operating Voltage+12V +/-8%; 3.3V +/-8%

PCI Power (Nominal) - 9.8W typical, Airflow 200 LFM

Device Support - 256 Non-RAID SAS/SATA devices

Integrated RAID (IR)

RAID 010 per volume

RAID 12 per volume plus hot spare

RAID 1E10 per volume

RAID 1010 per volume

Environmental - Operating Storage 0°C to 55°C-45°C to 105°C5 to 90%

Non-condensing - 5 to 90%

Non-condensing - MTBF>2,000,000

See http://www.lsi.com/support/pages/downloads.aspx for details on versions
