Генератор сигналов
Этот лот уже не продается, но мы нашли для вас похожие
Генератор сигналов
Начальная цена
12 000 руб.
Блиц-цена
12 500 руб.
Начальная цена
12 000 руб.
Блиц-цена
12 500 руб.
Торги не состоялись(4 фев 2024 15:47)
1 человек минимальное кол-во участников торгов
Описание лота
Состояние | Б/у |

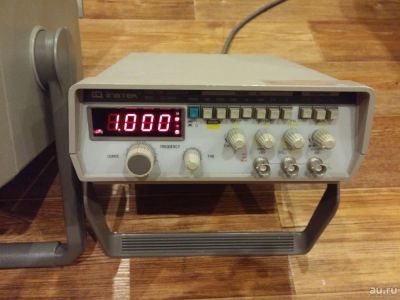

Instek GFG-8020H
Состояние нового.
Характеристика:
Waveform SINE, TRIANGLE, SQUARE, TTL pulse and CMOS output
Amplitude >20Vp-p (open circuit ) >10Vp-p (into 50? load)
Impedance 50?±10%
Attenuator -20dB±1dB (at 1kHz)
DC Offset <-10V to >+10V (<-5V to >+5V into 50? load)
Duty Control 1:1 to 10:1 continuously adjustable
Display 4 digits LED display
Frequency Range 0.2Hz to 2MHz 7 ranges
Frequency Control Separate coarse and fine tuning
SINE WAVE
Distortion <1% (0.2Hz ~ 20kHz)
<2% (20kHz ~ 200kHz)
Flatness Response <0.2dB (0.2Hz ~ 100kHz)
<1dB (100kHz ~ 2MHz)
TRIANGLE WAVE
Linear 98%, 0.2Hz ~ 100kHz
95%, 100kHz ~ 2MHz
SQUARE WAVE
Symmetry <2%, 0.2Hz ~ 100kHz
Rise / Fall Time <120nS
CMOS OUTPUT
Level 4Vpp±1Vpp ~ 14.5Vpp±0.5Vpp adjustable
Rise / Fall Time < 120nS
TTL OUTPUT
Level > 3Vpp
Rise / Fall Time < 30nS
VCF
Input Voltage Approx. 0V ~ 10V(±1V) input for 10:1 frequency ratio
Input Impedance 10k?±10%
FREQUENCY COUNTER
Mode Internal only
Range 0.2Hz ~ 2MHz
Accuracy Time base accuracy±1 count
Time Base Oscillation frequency 3.58MHz, Temp. stability ±20ppm(23° C ± 5° C)
Resolution 0.1Hz, 1Hz, 10Hz, 100Hz, 1kHz
POWER SOURCE: АС230V ±10%, 50/60Hz
DIMENSIONS & WEIGHT
230(W) x 95(H) x 280(D)mm
Approx. 2.1 kg
Состояние нового.
Характеристика:
Waveform SINE, TRIANGLE, SQUARE, TTL pulse and CMOS output
Amplitude >20Vp-p (open circuit ) >10Vp-p (into 50? load)
Impedance 50?±10%
Attenuator -20dB±1dB (at 1kHz)
DC Offset <-10V to >+10V (<-5V to >+5V into 50? load)
Duty Control 1:1 to 10:1 continuously adjustable
Display 4 digits LED display
Frequency Range 0.2Hz to 2MHz 7 ranges
Frequency Control Separate coarse and fine tuning
SINE WAVE
Distortion <1% (0.2Hz ~ 20kHz)
<2% (20kHz ~ 200kHz)
Flatness Response <0.2dB (0.2Hz ~ 100kHz)
<1dB (100kHz ~ 2MHz)
TRIANGLE WAVE
Linear 98%, 0.2Hz ~ 100kHz
95%, 100kHz ~ 2MHz
SQUARE WAVE
Symmetry <2%, 0.2Hz ~ 100kHz
Rise / Fall Time <120nS
CMOS OUTPUT
Level 4Vpp±1Vpp ~ 14.5Vpp±0.5Vpp adjustable
Rise / Fall Time < 120nS
TTL OUTPUT
Level > 3Vpp
Rise / Fall Time < 30nS
VCF
Input Voltage Approx. 0V ~ 10V(±1V) input for 10:1 frequency ratio
Input Impedance 10k?±10%
FREQUENCY COUNTER
Mode Internal only
Range 0.2Hz ~ 2MHz
Accuracy Time base accuracy±1 count
Time Base Oscillation frequency 3.58MHz, Temp. stability ±20ppm(23° C ± 5° C)
Resolution 0.1Hz, 1Hz, 10Hz, 100Hz, 1kHz
POWER SOURCE: АС230V ±10%, 50/60Hz
DIMENSIONS & WEIGHT
230(W) x 95(H) x 280(D)mm
Approx. 2.1 kg
