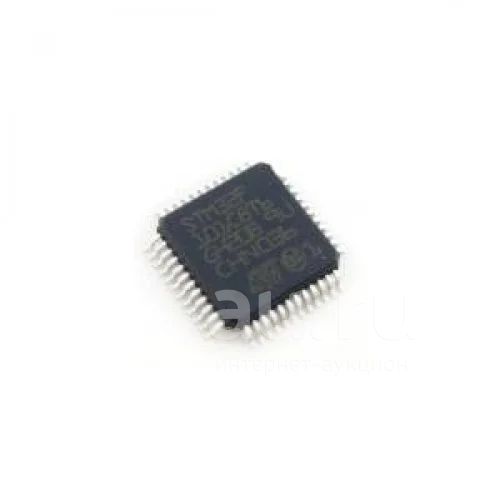

Микроконтроллер STM32F103C8T6 LQFP48 STM32F103C STM32
Удалён продавцом.
29 окт 2020 09:26
Этот лот уже не продается, но мы нашли для вас похожие
Микроконтроллер STM32F103C8T6 LQFP48 STM32F103C STM32
Цена
200 руб.
Количество: 3 в наличии
Описание лота
Состояние | Новое |
Программатор krsk.au.ru/7154680/
ARM 32-bit Cortex™-M3 CPU Core
72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
Single-cycle multiplication and hardware division
Memories
64 or 128 Kbytes of Flash memory
20 Kbytes of SRAM
Clock, reset and supply management
2.0 to 3.6 V application supply and I/Os
POR, PDR, and programmable voltage detector (PVD)
4-to-16 MHz crystal oscillator
Internal 8 MHz factory-trimmed RC
Internal 40 kHz RC
PLL for CPU clock
32 kHz oscillator for RTC with calibration
Low power
Sleep, Stop and Standby modes
VBAT supply for RTC and backup registers
2 x 12-bit, 1 ?s A/D converters (up to 16 channels)
Conversion range: 0 to 3.6 V
Dual-sample and hold capability
Temperature sensor
DMA
7-channel DMA controller
Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
Up to 80 fast I/O ports
26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Debug mode
Serial wire debug (SWD) & JTAG interfaces
7 timers
Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
16-bit, motor control PWM timer with dead-time generation and emergency stop
2 watchdog timers (Independent and Window)
SysTick timer 24-bit downcounter
Up to 9 communication interfaces
Up to 2 x I2C interfaces (SMBus/PMBus)
Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
Up to 2 SPIs (18 Mbit/s)
CAN interface (2.0B Active)
USB 2.0 full-speed interface
CRC calculation unit, 96-bit unique ID
Packages are ECOPACK®
http://lib.chipdip.ru/235/DOC000235733.pdf
ARM 32-bit Cortex™-M3 CPU Core
72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
Single-cycle multiplication and hardware division
Memories
64 or 128 Kbytes of Flash memory
20 Kbytes of SRAM
Clock, reset and supply management
2.0 to 3.6 V application supply and I/Os
POR, PDR, and programmable voltage detector (PVD)
4-to-16 MHz crystal oscillator
Internal 8 MHz factory-trimmed RC
Internal 40 kHz RC
PLL for CPU clock
32 kHz oscillator for RTC with calibration
Low power
Sleep, Stop and Standby modes
VBAT supply for RTC and backup registers
2 x 12-bit, 1 ?s A/D converters (up to 16 channels)
Conversion range: 0 to 3.6 V
Dual-sample and hold capability
Temperature sensor
DMA
7-channel DMA controller
Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
Up to 80 fast I/O ports
26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Debug mode
Serial wire debug (SWD) & JTAG interfaces
7 timers
Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
16-bit, motor control PWM timer with dead-time generation and emergency stop
2 watchdog timers (Independent and Window)
SysTick timer 24-bit downcounter
Up to 9 communication interfaces
Up to 2 x I2C interfaces (SMBus/PMBus)
Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
Up to 2 SPIs (18 Mbit/s)
CAN interface (2.0B Active)
USB 2.0 full-speed interface
CRC calculation unit, 96-bit unique ID
Packages are ECOPACK®
http://lib.chipdip.ru/235/DOC000235733.pdf
