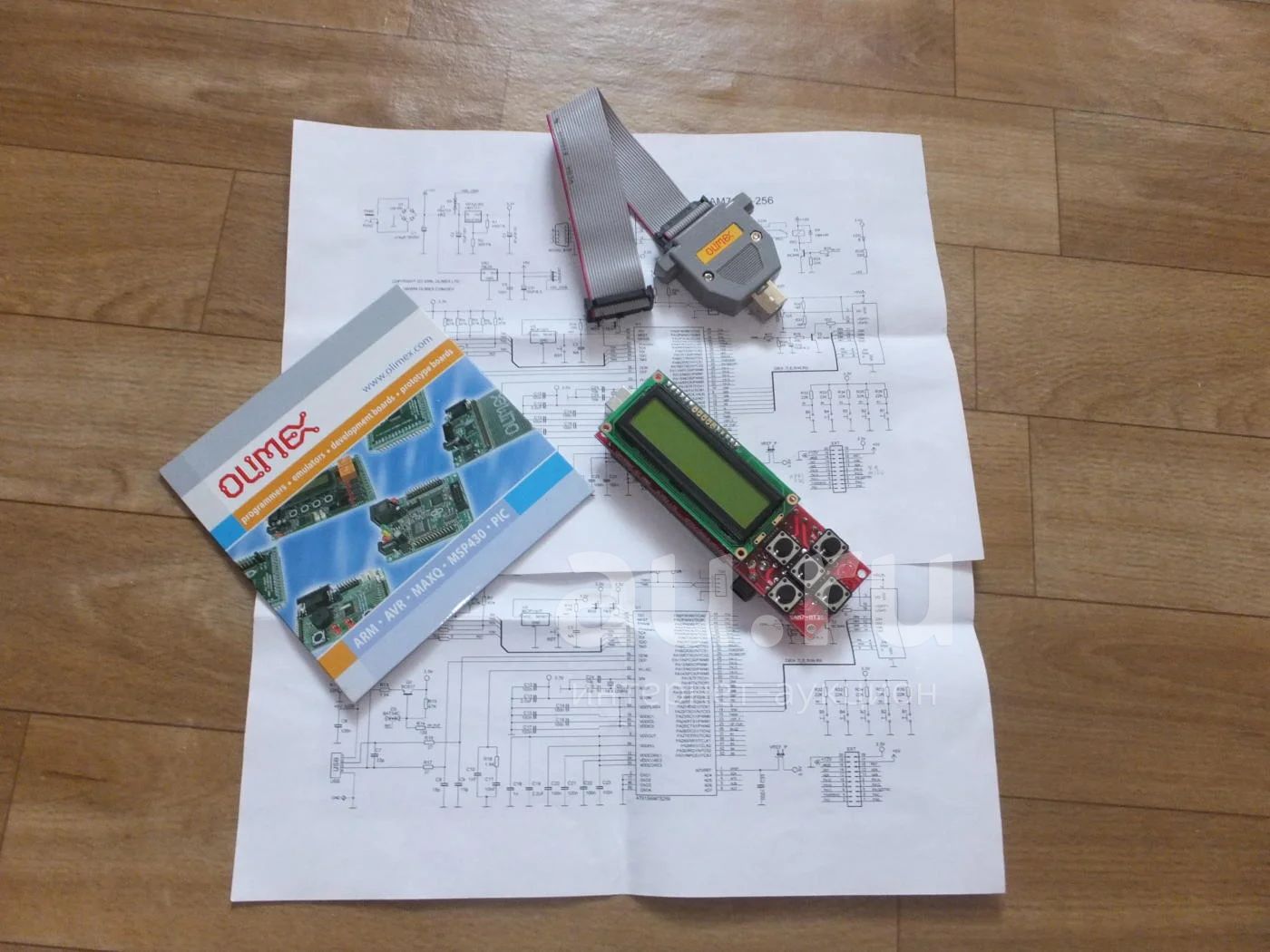

Плата Olimex SAM7-MT256 + JTAG ARM USB Tiny
Удалён продавцом.
Описание лота
Состояние | Новое |
плата
https://www.olimex.com/Products/ARM/Atmel/SAM7-MT256/
http://www.terraelectronica.ru/catalog_info.php?CODE=225183
JTAG
https://www.olimex.com/Products/ARM/JTAG/ARM-USB-TINY/
http://www.terraelectronica.ru/catalog_info.php?CODE=259914
MCU: AT91SAM7S256 16/32 bit ARM7TDMI™ with 256K Bytes Program Flash, 64K Bytes RAM, USB 2.0, RTT, 10 bit ADC 384 ksps, 2x UARTs, TWI (I2C), SPI, 3x 32bit TIMERS, 4x PWM, SSC, WDT, PDC (DMA) for all peripherals, up to 60MHz operation
Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
USB connector
LCD 16x2 with backlight
RS232 interface and driver
Relay 10A/250VAC
Buzzer
5 buttons
Status LED
On board voltage regulator 3.3V with up to 800mA current
Single power supply: 12V AC or DC required
Power supply filtering capacitor
RESET circuit , RESET button
18.432 Mhz crystal on socket
Extension headers for all uC ports
PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
Dimensions: 120 x 38 mm (4.7 x 1.5")
