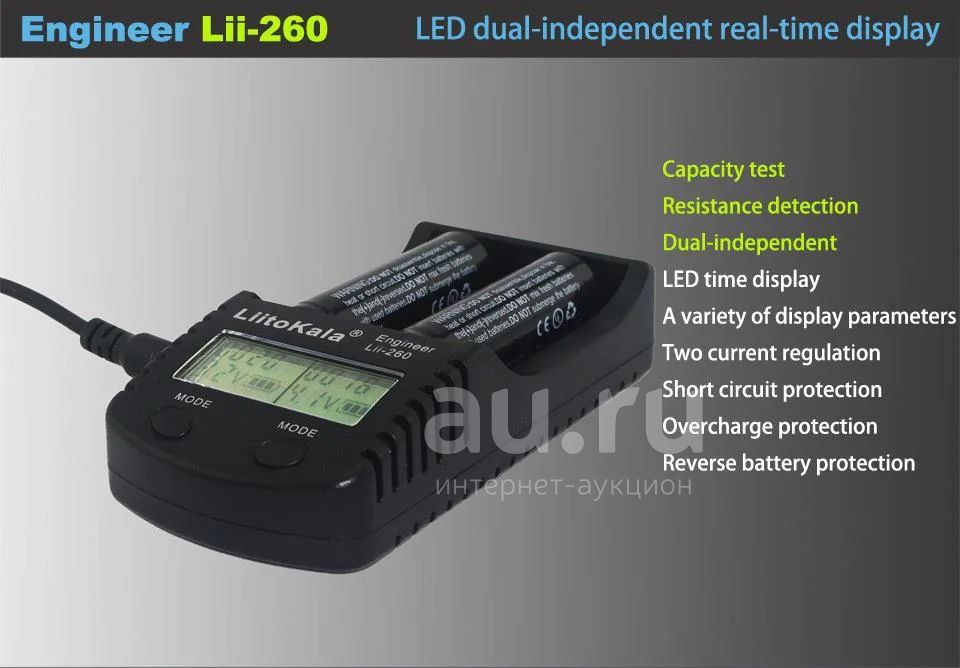

Зарядное устройство двухканальное с возможностью тестирования реальной ёмкости LiitoKala Engineer Lii-260 для цилиндрических Li-ion 3.7v аккумуляторов 26650 / 22650 / 18650 / 17670 / 18490 / 17500 / 17335 / 16340 (RCR123) / 14500 / 10440

Engineer Lii-260 instruction for use
Warning:
1.1 charger only serve lithium ion battery cylindrical.
1.2 before use, please carefully instruction manual, note rechargeable battery of the recommended charge current, don't recommended above current charge.
1.3 do not use other AC/DC adapter.
1.4 charger charge discharge may fever, noticing don't scald.
1.5 stop , please remove ac power supply.
1.6 can only in normal indoor use.

Features:
2.1 two kinds of charge current adjust (500mA/1000mA).
2.2 can various specifications (18650/26650) battery simultaneously charge.
2.3 every battery display LCD have independent charge parameter.
2.4 charger mode , different charge current charge.
2.5 dischareger mode (first full electric again discharge), detect battery capacity.
2.6 charger and discharger two models can be done concurrently.
2.7 each one battery are available at or autocephalous / set charge capacity detection function.
2.8 variety display mode, current (mA) / capacity (mAh) / voltage (v) / time (h) / resistance (mR).
2.9 30mm with 's AC/DC adapter.

Keys (mode) description:
3.1 charger have two buttons , control of scranton, brief convenient to use
3.2 in any case key hold down mode and keep 3 seconds change charger (charge) mode or discharge (capacity detection) mode , then in 8 seconds tootle again change current , current 8 selected seconds after into gear, in a can light press (mode) key, view current (mA) / capacity (mAh) / voltage (v) / time (h) / resistance (mr).

Operation mode:
4.1 charge mode (charge mode)
1. when switching-in power supply charger when, charger all LCD screen instant full bright, if batteries not put into will show null, if is bad battery put into also display null.
2. when charger rslite into the battery , charger in 3 seconds about measured out battery resistance, after the system automatic enter the charge current selected mode, screen in. 500mA. thundered the 's 8 seconds flicker, in the period can pass key mode choice 500mA or 1000 ma current charge, system in 8 seconds after will be your choice lock current charge, if in 8 seconds, no make a set the, so system automatic to 500mA current charge, current at this time won't change, if you want to change, reset battery need.
3. user need advertent rechargeable battery the maximum charge current, if you need fast charge, suggest to use 500ma charge, this is the most safe and for battery also the most favorable.
4. charge mode , through mode gently press key can switch to view charge battery power (mAh) / charge time (h) / battery resistance (mr) / charge current (ma), 4 types, batterycharge full after, will show full, undermost a row of small word display charge end (charge end).
4.2 discharge mode (capacity detection mode).
4.2 . 1 discharge mode is battery full, then put the battery discharge and record discharge detection battery thereby coulant capacity, will automatically after the battery full.

4.2 . 2 - - battery put in out battery charger determination resistance after, arbitrary in the state of long mode key press 3 into the second discharge model discharge into the discharge - - after mode , screen appear. 500ma. thundered the 's 8 seconds flicker , in the period can pass key mode choice 500ma or 1000 ma current , system in 8 seconds after will be your choice lock current , if in this 8 seconds , no make a set the, then will automatically lock system 500ma current battery charge (selected current this time is system battery charge of current).
- - when battery full after, system automatic to 500ma current battery discharge and record discharge battery power, thereby detection battery capacity, when the screen appear when discharher and , capacity screen model end , of the indemnifiable screen flicker of electricity parameter for battery actual capacity . .
- - capacity detection mode after the end of, charger to 'll before the selected current characteristic again for battery charge, sufficiently until.

Specific parameters:
5.1 dc input voltage 12v / 1.5a
5.2 lithium battery charge current : 2x (4.2v 500ma) , 2x (4.2v 1000ma)
5.3 can charge pool : specification 18650 , 26650 etc
termination 5.4 : way smart voltage monitor
shape : 5.5 measurement 132mm ( long ) * 65mm (wide) * 31mm (high)

Joint adapter plug in put into the battery:
1. display battery internal resistance
2. charge current 500ma / 1000ma optional
3. battery voltage

Charger mode:
Press switch 1 under display have how much stormed into the battery capacity

Press switch 1 under display have how much stormed into the battery capacity

Press switch 3 under display battery resistance (resistance for reference only)

Dicharge mode press switch 3 into the second capacity detection mode, lobulation condensive current 500ma/1000ma size optional (need in 8 temple choice capacity is condensive points)


Press switch 1 under display splitting-out battery the capacity.


Press switch 2 under needed to display the time of fundotions points.


Press switch 3 under display resistance.
