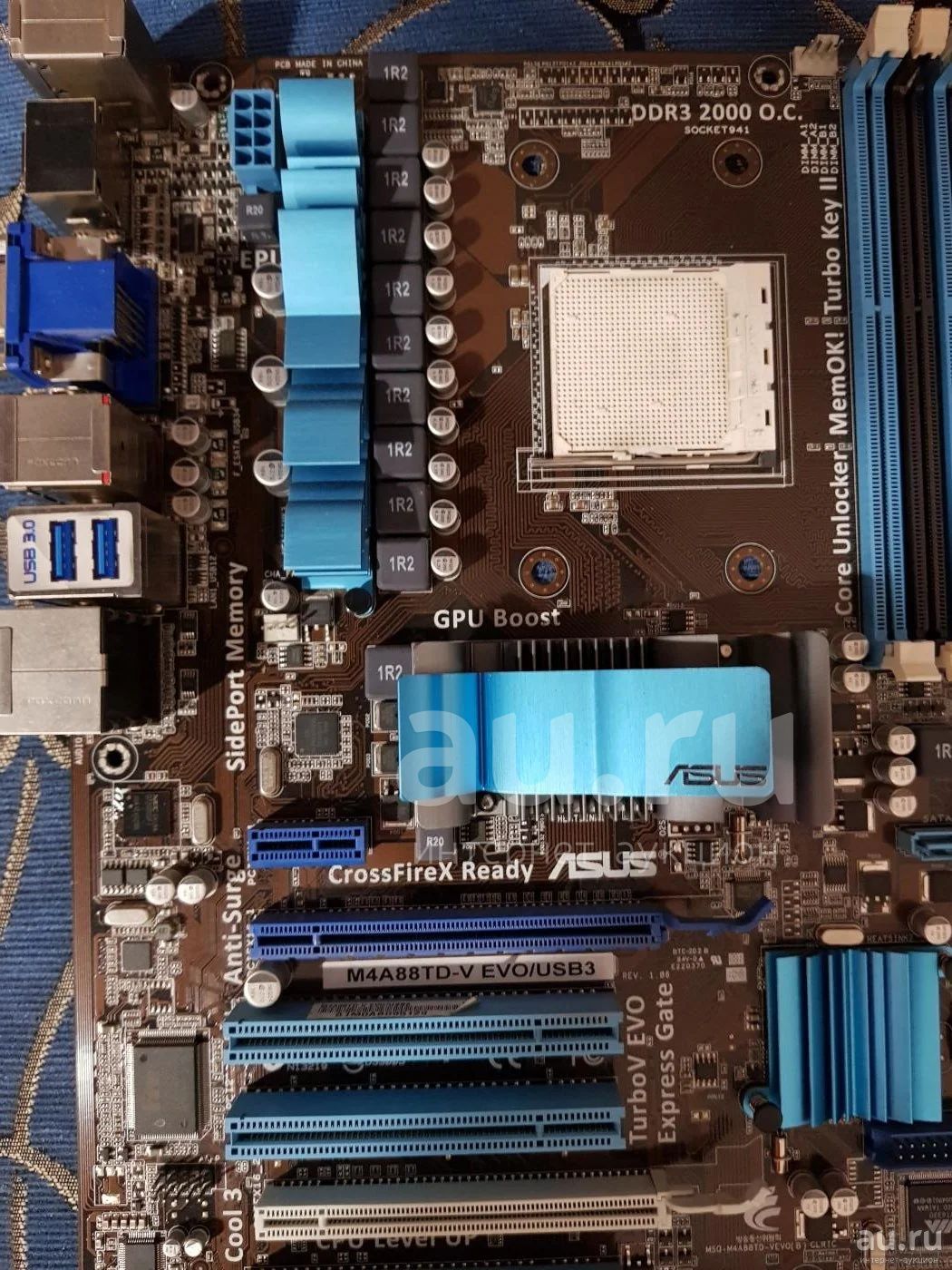

Материнская плата Asus M4A88TD-V EVO/USB3.0 для AMD socket AM3 с видеокартой

Поддерживать процессоры
AMD AM3 Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports AM3 45 nm CPU
Supports CPU up to 140 W
AMD Cool 'n' Quiet™ Technology

Чипсет
AMD 880G/SB850

Оперативная память
4 x DIMM, Max. 16GB, DDR3 2000(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

System Bus
Up to 5.2 GT/s HyperTransport™ 3.0

Встроенная видеокарта
Integrated ATI Radeon™ HD 4250 GPU
Multi-VGA output support : HDMI/DVI/RGB ports
Maximum shared memory of 1024 MB
SidePort Memory - onboard 128MB DDR3 1333 memory
Dual independent displays support with HDMI/DVI and D-Sub
Hardware Decode Acceleration for H.264, VC-1, and MPEG-2
Blu-ray playback support *1
Supports DirectX 10.1, OpenGL 2.0, Shader Model 4.1, Universal Video Decoder (UVD) 2.0
Multi-GPU Support
Supports AMD CrossFireX™ Technology

Слоты PCIe
1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, gray)
1 x PCIe 2.0 x1
3 x PCI

Storage
AMD SB850 controller :
5 x SATA 6Gb/s port(s), blue
1 x eSATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10, JBOD

VIA VT6330 controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue

LAN
Realtek® 8111E , 1 x Gigabit LAN Controller(s), featuring AI NET2

Audio
Realtek® ALC 892 8-Channel High Definition Audio CODEC
IEEE 1394
VIA® VT6330 controller
2 x IEEE 1394a port(s)
(1 at mid-board, 1 at back panel)

USB Ports
Built-in Controller :
12 x USB 2.0 port(s) (4 at back panel, black+red, 8 at mid-board)
Built-in Controller :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)

Special Features
ASUS Hybrid Processor - TurboV EVO :
- Turbo Unlocker
- Auto Tuning
- TurboV
- CPU Level Up
- GPU Boost
ASUS Hybrid Switch :
- Core Unlocker
- Turbo Key II
ASUS Power Design :
- 8 +2 Phase Power Design
- ASUS EPU
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x eSATA 6Gb/s
1 x IEEE 1394a
2 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
5 x SATA 6Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Core Unlocker switch(es)
1 x Turbo Key II switch(es)

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1: Please use Windows Vista or above OS for Blu-ray Playback.
*2: Retail version only.

Отличная материнская плата, присутствует разгон как процессора, так и оперативки
