Материнская плата Asus P5KPL-CM
Продан по цене «Купить сейчас».
10 фев 2017 13:25
Этот лот уже не продается, но мы нашли для вас похожие

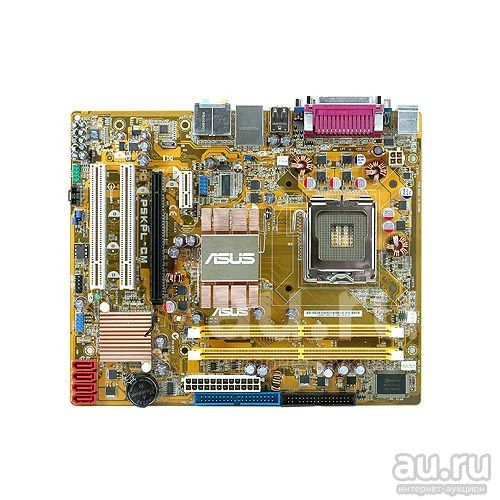

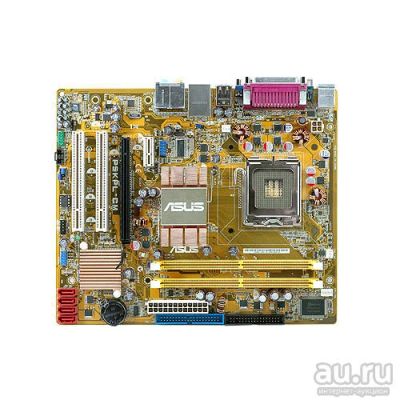

Материнская плата Asus P5KPL-CM
Текущая цена
1 200 руб.
Блиц-цена
1 200 руб.
Текущая цена
1 200 руб.
Победитель
1
Блиц-цена
1 200 руб.
Продан по Блиц-цене(10 фев 2017 13:25)
1 человек минимальное кол-во участников торгов
Описание
Состояние | Б/у |
Производитель материнской платы | ASUS |
Производитель процессора | Intel |
Сокет | LGA 775 (Socket T) |
Комплектующее для | Компьютера |
Форм-фактор | Micro-ATX |
CPU
Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® D/Pentium® 4/Celeron E1000 Series and Celeron 400 Series Processors
Support Intel® 45nm CPU
Intel® Hyper-Threading Technology ready
Supports Enhanced Intel SpeedStep ®Technology(EIST)
Chipset
Intel G31
Intel ICH7
Front Side Bus
1600/1333/1066/800 MHz (*1600 is overclock speed)
Memory
2 x DIMM, Max. 4 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Overclock speed
**Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
***When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA
Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz
Storage
Southbridge
1 xUltraDMA 100/66/33
4 x Serial ATA 150/300 ports
LAN
PCIe Gigabit LAN
Audio
VIA VT1708B 8 -Channel High-Definition Audio CODEC
USB
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Special Features
ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x internal speaker connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
CD audio in connector
Front panel audio connector
Chassis Intrusion connector
System Panel
1 x 24-pin EPS 12V Power connector
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4
Manageability
WOL,PXE,RPL,WOR ,PME Wake Up
Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® D/Pentium® 4/Celeron E1000 Series and Celeron 400 Series Processors
Support Intel® 45nm CPU
Intel® Hyper-Threading Technology ready
Supports Enhanced Intel SpeedStep ®Technology(EIST)
Chipset
Intel G31
Intel ICH7
Front Side Bus
1600/1333/1066/800 MHz (*1600 is overclock speed)
Memory
2 x DIMM, Max. 4 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Overclock speed
**Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
***When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA
Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz
Storage
Southbridge
1 xUltraDMA 100/66/33
4 x Serial ATA 150/300 ports
LAN
PCIe Gigabit LAN
Audio
VIA VT1708B 8 -Channel High-Definition Audio CODEC
USB
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Special Features
ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x internal speaker connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
CD audio in connector
Front panel audio connector
Chassis Intrusion connector
System Panel
1 x 24-pin EPS 12V Power connector
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4
Manageability
WOL,PXE,RPL,WOR ,PME Wake Up
