Сканер штрих-кодов Yongli XYL-810
Удалён продавцом.
2 фев 2017 09:45
Сканер штрих-кодов Yongli XYL-810
Цена
800 руб.
Цена
800 руб.
Удалён(2 фев 2017 09:45)
Описание
Состояние | Б/у |
USB сканер штрих-кодов, использовался около года, состояние нового, комплект полный.
Ниже представлена спецификация от производителя:

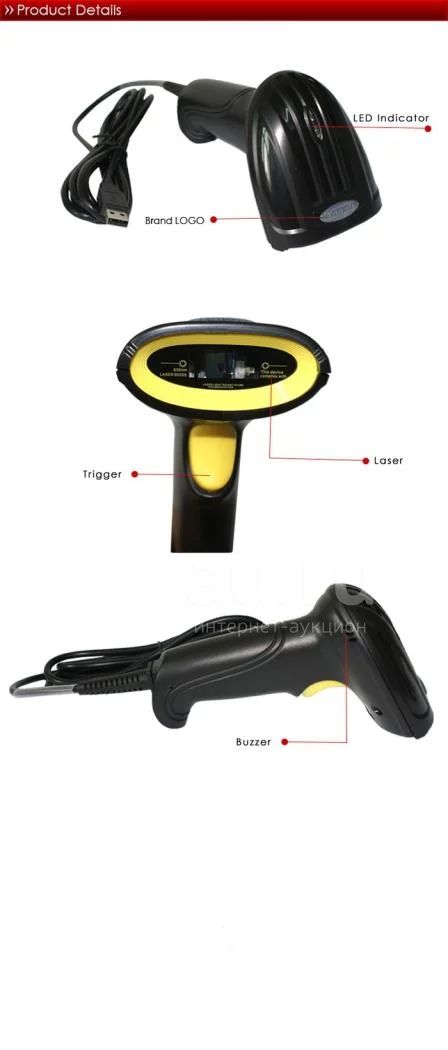

Laser Barcode Scanner 810
Functionality Item -Performance Parameter
Light Source -650 nm (visible)
Use Type -Hand-held or bracket-held installation
Bit Error Rate (BER) -1/5 million
Decode Capability -UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5
Interfaces Supported -RS232, USB,PS/2(this one is USB)
Scanning Type -Automatic scanning or manual
Resolution -0.10mm (4mil) PCS0.9
Depth of Field -2-9mm(0.1mm bar width);3-40mm(0.3mm bar width)
Scan Rate -78 scans per second
Reading Preciseness -0.40-0.825mm
Reading Distance -10-600mm
Transfer Rate -RS232 baudrate2400-38400
Print Contrast -30% minimum reflective difference
Scanning Angle -Inclination angle 45°, Elevation angle 60°
Operating Temperature --0°C - 50°C / 32°F to 122°F
Storage Temperature --40°C - 70°C / -40°F to 158°F
Operating Humidity -0% - 95% (non condensing)
Storage Humidity -5% - 95% (non condensing)
Power Voltage -5V
Working Current -57mA
Static Current -36mA
Shock -1.5m drop on concrete surface
Ambient Light Immunity -Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight
Electrostatic Discharge -Conforms to ±15KV air discharge and ±8KV of contact discharge
EMI/EMS -En50081, par1 criteria
Dustproof -Iec529, ip42 criteria
Housing Material -ABS+PC+PVC
Color -Black
Weight -350g
Dimension -20x6.5x5.8cm
Safety -China National Laser Safety Standard Level 2
Ниже представлена спецификация от производителя:
Laser Barcode Scanner 810
Functionality Item -Performance Parameter
Light Source -650 nm (visible)
Use Type -Hand-held or bracket-held installation
Bit Error Rate (BER) -1/5 million
Decode Capability -UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5
Interfaces Supported -RS232, USB,PS/2(this one is USB)
Scanning Type -Automatic scanning or manual
Resolution -0.10mm (4mil) PCS0.9
Depth of Field -2-9mm(0.1mm bar width);3-40mm(0.3mm bar width)
Scan Rate -78 scans per second
Reading Preciseness -0.40-0.825mm
Reading Distance -10-600mm
Transfer Rate -RS232 baudrate2400-38400
Print Contrast -30% minimum reflective difference
Scanning Angle -Inclination angle 45°, Elevation angle 60°
Operating Temperature --0°C - 50°C / 32°F to 122°F
Storage Temperature --40°C - 70°C / -40°F to 158°F
Operating Humidity -0% - 95% (non condensing)
Storage Humidity -5% - 95% (non condensing)
Power Voltage -5V
Working Current -57mA
Static Current -36mA
Shock -1.5m drop on concrete surface
Ambient Light Immunity -Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight
Electrostatic Discharge -Conforms to ±15KV air discharge and ±8KV of contact discharge
EMI/EMS -En50081, par1 criteria
Dustproof -Iec529, ip42 criteria
Housing Material -ABS+PC+PVC
Color -Black
Weight -350g
Dimension -20x6.5x5.8cm
Safety -China National Laser Safety Standard Level 2
