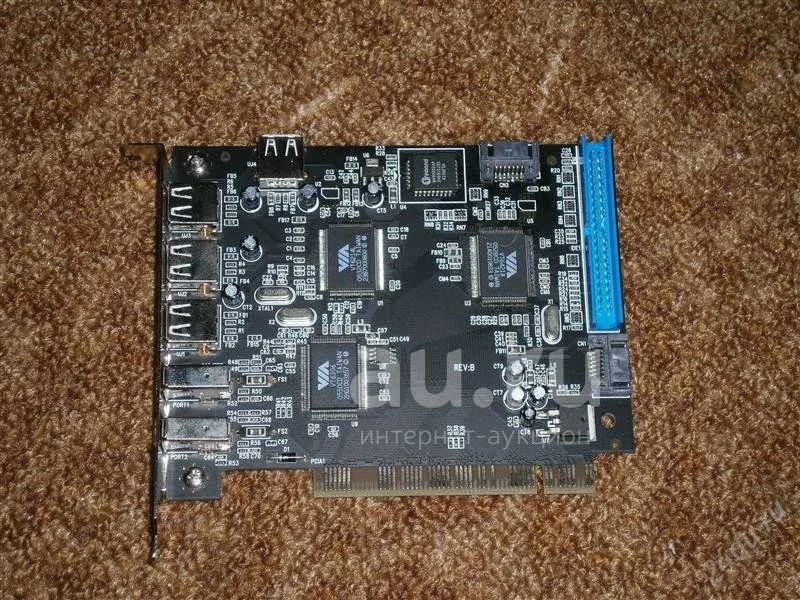

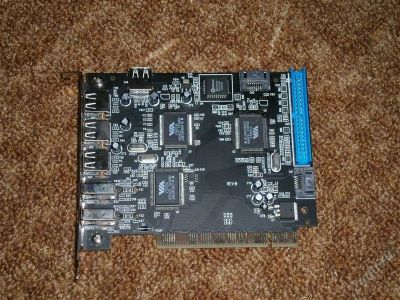

PCI USB 2.0 + 1394a + ATA133 + SATA Super Combo Card
Продано.
23 апр 2011 05:31
Этот лот уже не продается, но мы нашли для вас похожие
PCI USB 2.0 + 1394a + ATA133 + SATA Super Combo Card
Текущая цена
300 руб.
Блиц-цена
500 руб.
Текущая цена
300 руб.
Победитель
1
Блиц-цена
500 руб.
Продан(23 апр 2011 05:31)
1 человек минимальное кол-во участников торгов
Описание
Состояние | Новое |
Комплектующее для | Компьютера |
Features :
- PCI specification v.2.2 compliant
- USB, Serial ATA Drivers support WIN98SE/ME/NT/2000/XP
- IEEE 1394a No Drivers needed
USB 2.0 :
- USB 3 External Ports
- USB 2.0 specification compliant
- EHCI rev. 1.0, UHCI rev. 1.1 compliant
- 4 DMA engines with pipelined control for USB data transfer bandwidth
- Max. 480Mbps bandwidth
- 3 x External Ports + 1 x Internal Port
IEEE 1394a :
- IEEE 1394a 2 External Ports
- IEEE 1394a Open HCI v1.0 & v1.1 compliant
- 32 bit CRC generator & checker for Tx and Rx data
- 2K byte General Rx FIFO, 2K byte Isochronous Tx FIFO & 2K Byte Asynchronous Tx FIFO
- Max. 400Mbps bandwidth
Serial ATA :
- Serial ATA 2 Internal Ports
- Supports RAID 0, 1, 0+1 & JBOD
- Serial ATA Specification rev. 1.0 Compliant
- Supports both internal & external PHY with 1.5G bit/s
- Max. 150 MB/s Serial ATA drive transfer rate each port
Parallel ATA :
- Parallel Supports 2 EIDE devices
- Supports ATA PIO mode 4, multi-word DMA mode, & UDMA mode 6
- ATA/ATAPI-7 compliant
- PCI specification v.2.2 compliant
- USB, Serial ATA Drivers support WIN98SE/ME/NT/2000/XP
- IEEE 1394a No Drivers needed
USB 2.0 :
- USB 3 External Ports
- USB 2.0 specification compliant
- EHCI rev. 1.0, UHCI rev. 1.1 compliant
- 4 DMA engines with pipelined control for USB data transfer bandwidth
- Max. 480Mbps bandwidth
- 3 x External Ports + 1 x Internal Port
IEEE 1394a :
- IEEE 1394a 2 External Ports
- IEEE 1394a Open HCI v1.0 & v1.1 compliant
- 32 bit CRC generator & checker for Tx and Rx data
- 2K byte General Rx FIFO, 2K byte Isochronous Tx FIFO & 2K Byte Asynchronous Tx FIFO
- Max. 400Mbps bandwidth
Serial ATA :
- Serial ATA 2 Internal Ports
- Supports RAID 0, 1, 0+1 & JBOD
- Serial ATA Specification rev. 1.0 Compliant
- Supports both internal & external PHY with 1.5G bit/s
- Max. 150 MB/s Serial ATA drive transfer rate each port
Parallel ATA :
- Parallel Supports 2 EIDE devices
- Supports ATA PIO mode 4, multi-word DMA mode, & UDMA mode 6
- ATA/ATAPI-7 compliant
