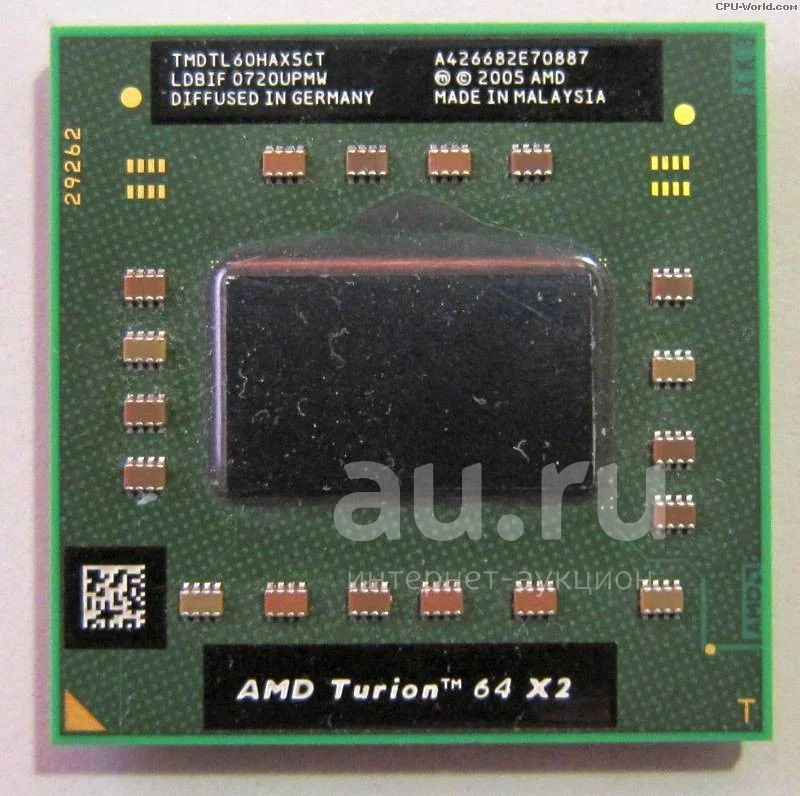

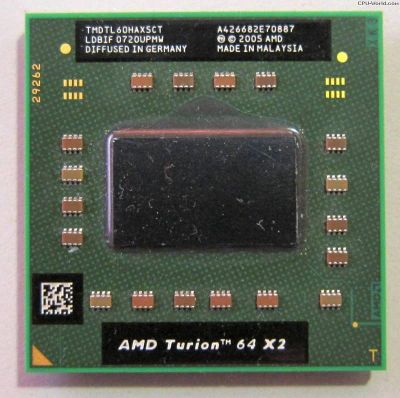

AMD Turion 64 X2 TL-60 (TMDTL60HAX5CT) CPU 1600/2 GHz Socket S1

General information
Type CPU / Microprocessor
Market segment Mobile
Family AMD Turion 64 X2 Mobile technology
Model number ? TL-60
CPU part numbers
TMDTL60HAX5CT is an OEM/tray microprocessor
TMDTL60CTWOF is a boxed microprocessor
Stepping codes ADB5F CDB5F LDB5F LDB8F LDBDF LDBGF LDBIF
Frequency ? 2000 MHz
Bus speed ? One 800 MHz 16-bit HyperTransport link (1.6 GT/s)
Clock multiplier ? 10
Package 638-pin lidless micro-PGA
AMD Package number 29262
Socket Socket S1 (S1g1)
Size 1.38" x 1.38" / 3.5cm x 3.5cm
Introduction date May 17, 2006
Price at introduction $354
Architecture / Microarchitecture
Microarchitecture K8
Processor core ? Trinidad
Core stepping ? BH-F2
CPUID 40F82
Manufacturing process 0.09 micron silicon-on-insulator (SOI) technology
153.8 million transistors
Die size 172.1mm2
Data width 64 bit
The number of CPU cores 2
The number of threads 2
Floating Point Unit Integrated
Level 1 cache size ? 2 x 64 KB 2-way set associative instruction caches
2 x 64 KB 2-way set associative data caches
Level 2 cache size ? 2 x 512 KB 16-way set associative exclusive caches
Cache latency 3 (L1 cache)
Physical memory 1 TB
Virtual memory 256 TB
Multiprocessing Uniprocessor
Features
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
AMD64 / AMD 64-bit technology ?
EVP / Enhanced Virus Protection ?
AMD-V / AMD Virtualization technology
Low power features
PowerNow!
Deeper Sleep state ?
Integrated peripherals / components
Integrated graphics None
Memory controller The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR2-400, DDR2-533, DDR2-667
Maximum memory bandwidth (GB/s): 10.7
Other peripherals HyperTransport interface (1 link)
Electrical / Thermal parameters
V core ? 1.075V / 1.1V
Maximum operating temperature ? 95°C
Thermal Design Power ? 35 Watt
