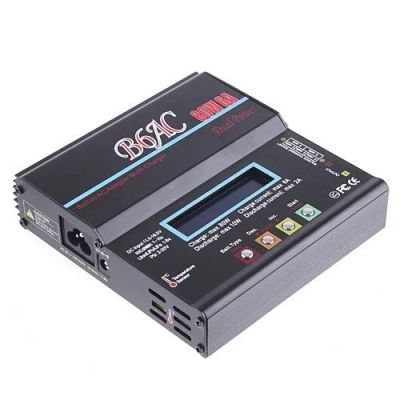

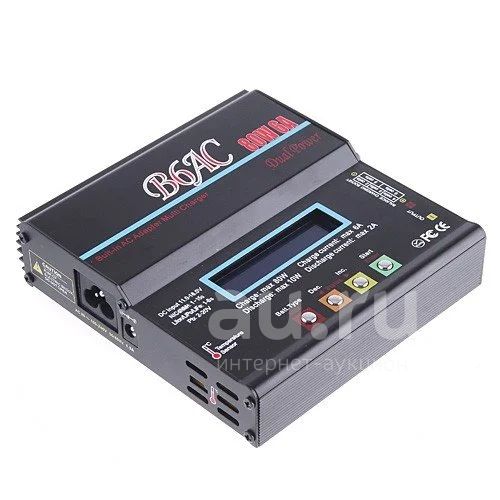

Зарядное устройство (балансир) iMax B6AC 80W 6A HBC680 (Ni-Cd / NI-MH / Li-Ion / Li-Pol / Li-Fe / Pb) со встроенным блоком питания

Отсутствует изоляция одного из крокодилов.

Built-in AC 80W 6A Adapter. Multi Charger & Discharger. Perfect for the hobbyist who wants to be able to charge a wide range of battery types and wants to be able to charge at home (110-240V) and at the field (off of any 12V power source). It features built-in balancing for NiCd/MH/LiLo/LiFe/Pb batteries to keep your batteries at maximum performance.
Features:
Optimized operating software
B6AC features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!

Internal independent lithium battery balancer
B6AC employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.

Balancing individual cells battery discharging
During the process of discharging, B6AC can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to various type of lithium battery
B6AC is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, ?fast' charge reduce the duration of charging, whereas ?store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.

Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.

Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.

Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

Temperature threshold*
The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. * This function is available by connecting optional temperature probe, which is not included in our package.

Processing time limit:
You can also limit the maximum process time to avoid any possible defect.

Input power monitoring
To protect the car battery used as DC input power from being damaged, its voltage keeps being monitored. If it drops below the lower limit, the process will be ended automatically.

Data store/load
The maximum five batteries'data can be stored for users'convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.

Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery refreshing and Balancing to stimulate the battery's activity.

Specifications:
Operating voltage: DC 11-18V; AC 110-240V, 50/60Hz
Charging power: 50-80W
Charging current: 0.1-5.0A
Discharging current: 0.1-2.0A
Plug standard: US Canada UL CSA Certified standard plug (as shown in the pictures)
NiCd/MH: 1-15 cells
LiLo/LiPo/LiFi: 1-6 cells
Pb: 2-20 cells
No. of cycle: 1-5 times
Battery data memory: Up to 5 data
Product weight: 524g
Product dimensions: 145x136x41mm
Package weight: 763g
Package dimensions: 214x172x45mm

Package Contents List:
1 x Battery Balance Charger
1 x Power Supply Connecting Cable
6 x Multifunctional Cables (as shown in the pictures)
1 x User Manual
