Тонкий клиент Sun Microsystems SunRay 1G / Sun Ray 1

Sun Ray[tm] 1 Appliance: Hardware Specifications

Processor
Number One
Architecture 100-MHz SPARC[tm] IIep
Main Memory
Capacities
8 MB on board

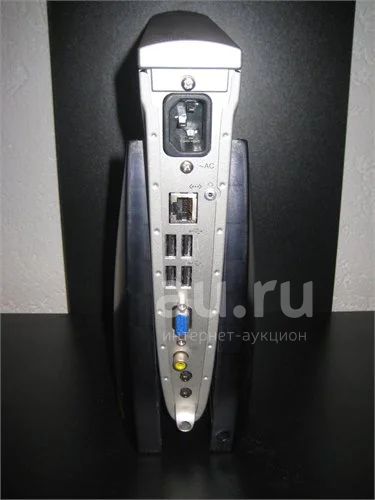

Standard Interfaces
Audio Four 16-bit stereo audio ports using standard 0.125-inch (3.5-mm) jacks
Front - headphone(out) and microphone(in)
Rear - line-in and line-out
Composite Video In NTSC/PAL, RCA connector
Ethernet One ethernet/fast ethernet (10BASE-T/100BASE-T) twisted-pair standard port (RJ-45)
Graphics One graphics port (HD15), onboard 24-bit, 2-D accelerated; up to 1280 x 1024 @ 75 Hz (default)
Note: Many PC monitors work with the Sun Ray 1 appliance but there will be no certification.
Keyboard and mouse Type 6 USB keyboard and Type 6 USB mouse
Smart Card The smart card interface (10-pin) connector conforms to ISO-7816-1
USB Four standard Universal Serial Bus (USB) Type A ports, powered
Environment
AC input 100 - 240 VAC, 50 - 60 Hz, 0.5 A
Input power 30 W(max), <20 W(typical)
Temperature Operating: 0° C to 40° C (32° F to 104° F)
Nonoperating: -20° to 60° C (-4° F to 140° F)
Humidity Operating: 5% to 93% relative humidity
Nonoperating: 93% relative humidity
Altitude Operating: 3200 m (10,500 ft.)
Nonoperating: 12,500 m (41,000 ft.)
Acoustic noise Operating: 3.0 bels
Idling: 3.0 bels
Vibration Operating: 0.0001 G2/Hz maximum random, 5 to 500 Hz
Nonoperating: 0.001 G2/Hz maximum random, 5 to 500 Hz
Shock Operating: 5G maximum, 11 msec. half-sine pulse
Nonoperating: 30G maximum, 11 msec. half-sine pulse
Number of cords 1
Plug type - U.S. NEMA 5-15P
Regulations
Meets or exceeds the following requirements:
Safety
Complies with the Low Voltage Directive 73/23/EEC based upon type examination certification to the following standards:

EN60950/IEC950
EN60950 with all countries deviations
FCC Class B
Part 15 compliance, operation subject to the following two conditions:

This device may not cause harmful interference
This device must accept any interference received, including interference that may cause undesired operation
EMC Directive 89/336/EEC
- EN55022/CISPR22 (1985), Class B

- EN55024

IEC801-2 (1991), 4 kV (Direct), 8 kV (Air)
IEC801-3 (1984), 3 V/m
IEC801-4 (1988), 1.0 kV Power Lines, 0.5 kV Signal Lines
- EN61000-3-2/IEC1000-3-2 (1994), Pass

Industry Canada Class B Notice (Avis Industrie Canada, Classe B) Complies with Canadian ICES-003 (NMB-003)
Product Label CE Mark: Complies with all requirements
Power management Energy Star compliant
Dimensions and Weights (Unit with Base)
Height 30.6 cm (12.0 in.)
Width 10.2 cm (4.0 in.)
Depth 28.0 cm (11.0 in.)
Weight 1.8 kg (3.9 lb.)
