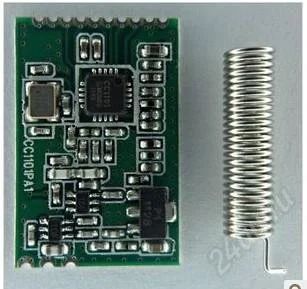

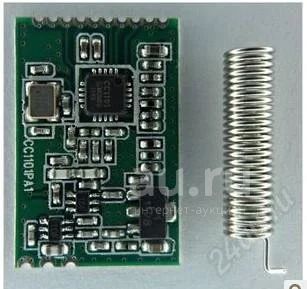

CC1101 433MHz wireless module

Product Features

• Output power up to 30dBm, the reliable transmission distance up to 1200m above

433MHz wireless transceiver, be ordered 315M/868M/915M other contained frequency

• support FSK, GFSK, ASK / OOK and MSK modulation mode programmable configure the transmission data rate 1.2k-500 kbps

• Built-in forward error correction FEC, high sensitivity, point to point, point-to-multipoint, flexible means of communication

• RSSI output and carrier sense indicator

• SMD components 26.0 * 17.0 * 2.4 mm, small size

• Use low-cost micro-control availability of high-performance RF system

• SPI interface

The range of applications, logistics tracking, warehouse inspection, electronic labels alternative 232,485 industrial instrumentation of wireless data communications, wireless data acquisition and control of AMR (water, electricity, gas) and three table automatic meter reading

• buildings and residential (smart Home) control

• wireless remote control of consumer electronics products

• wireless alarm and security systems for wireless sensor networks

Technical parameters

Technical indicators

Parameter

Remarks

Operating voltage

DC 3.0-3.6V

Amplifier the VDS 3 - 9V

Operating frequency

433MHz

Programmable preparation +-5MHz

Frequency error

+-10KHz

Modulation mode

FSK / GFSK / ASK / OOK / MSK

Programmable preparation

Output power

22-30dBm

Receiver sensitivity

-112dBm

2.4 Kbps

Saturation

-15dBm

Receive current

<20mA

2.4 Kbps

Emission current

90-250mA

Related to the output power

Standby current

2uA

Transmission rate

1.2-500Kbps

Programmable preparation

Data interface

SPI interface

Communication distance

1200m

2.4Kbps visual distance

Antenna impedance

50ohm

Storage Temperature

-50-150 ° C

Operating Temperature

-40-85 ° C

Dimensions

26.0 * 17.0 * 2.4 mm
