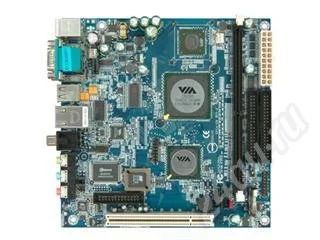

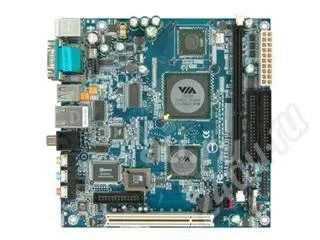

миниатюрная VIA EPIA-CN10000EG Mini-ITX Motherboard with VIA C7 1GHz Fanless Processor +IDE SSD Flash 512\1024mb disk

миниатюрная мамка, подходит отлично для дом. медиацентра или сервера - безвентиляторная!!! есть встроенные тв выходы НЧ композит+Svideo. + в коплекте переходник Riser Card "ёлочка" на 2 PCI разъема (сбоку-вверх вставляются и не торчат ниоткуда платы) т.е. можно воткнуть 2 платы PCI .

Лежала не использовалась, не пригодилась, руки все не дошли. В комплекте 512мб флеш IDE диск Pretec, вставляется прямо в слот мамки. Купившему по блиц цене заменяется на IDE флешку 1гб Transcend.

Processor
1.0GHz VIA C7 nanoBGA2 Fanless Processor
Chipset
VIA CN700 North Bridge
VIA VT8237R Plus South Bridge
System Memory
1 DDR2 400/533 DIMM socket
Up to 4 GB memory size
VGA
Integrated VIA Unichrome Pro AGP graphics with MPEG-2/4 decoding acceleration
Expansion Slots
1 PCI (2 with riser card)
Onboard IDE
2 X UltraDMA 133/100/66 Connector
Onboard LAN
VIA VT6103 LAN Controller
Onboard Audio
VIA VT1618 8-channel AC'97 Codec
Onboard TV Out
VIA VT1625M HDTV Encoder
Back Panel I/O
1 PS2 mouse port
1 PS2 keyboard port
1 VGA Port
1 Serial port
1 RJ-45 port
4 USB 2.0 ports
1 RCA port (S/PDIF or TV out)
1 S-Video port
3 Audio jacks: line-out, line-in and mic-in
Onboard I/O Connectors
1 USB connector for 4 additional USB 2.0 ports
2 SATA Connectors
1 Front-panel audio connector (Mic-in and Line Out)
1 CIR connector
1 LPT connector
1 CD-in connector
2 Fan connectors: CPU/Sys FAN
ATX Power connector
BIOS
Award BIOS
LPC 4/8Mbit flash memory
Operating System
Windows 2000/XP, Linux, Win CE/XPe
System Monitoring & Management
CPU temperature reading, CPU voltage monitoring
Wake-on-LAN, Keyboard-Power-on, Timer-Power-on
Watch Dog Timer, FAN control
System power management, AC power failure recovery
Operating Temperature
0~50°C
Operating Humidity
0% ~ 95% (relative humidity; non-condensing)
Form Factor
Mini-ITX (4 layer)
17 cm x 17 cm

The VIA EPIA CN Mini-ITX mainboard is available with either the 1.3GHz or 1.0GHz VIA C7® processor and boasts the ultra efficient VIA V4 bus interface and VIA CN700 digital media chipset to inspire a new generation of powerful and flexible digital media appliances.

Offering a rich digital media platform, the VIA EPIA CN Mini-ITX mainboard integrates the VIA UniChrome™ Pro IGP graphics processor with MPEG-2/4 hardware acceleration and the Chromotion™ CE engine to ensure smooth, crystal clear digital media streaming and playback. The platform also supports DuoView+ and has S-Video and RCA outputs to facilitate the design of dual display devices, as well as rich multi-channel audio for surround sound.

Setting new standards for flexibility and feature completeness, the VIA EPIA CN Mini-ITX mainboard supports up to 4GB of 400/533MHz DDR2 memory, native SATA II 0 and 1, and 10/100 Mbps broadband Ethernet. The platform also includes a PCI port, serial, parallel and USB ports for unparalleled connectivity options.

Leveraging the power efficient VIA C7® processor – based on the proven VIA Coolstream™ architecture and advanced 90nm process – with the energy efficient VIA CN700 digital media chipset supporting DDR2 memory, the VIA EPIA CN Mini-ITX mainboard boasts an average power consumption of just 16 watts to enable a new generation of low power consuming intelligent digital devices. The VIA C7® processor also integrates advanced hardware security with the VIA PadLock Security Engine. Offering a comprehensive sets of security tools that includes the world's fastest AES x86 encryption engine, the VIA PadLock Security Engine enables military-grade protection of data stored and exchanged without a hit to system performance.

The VIA EPIA CN Mini-ITX mainboard is compatible with Microsoft® Windows® 2000/XP, XPe and CE, as well as Linux, and offers developers a rich suite of security and media applications to accelerate time to market. Fully compatible with all Mini-ITX, FlexATX and MicroATX chassis and associated accessories including the new 120W DC-DC converter for VIA EPIA Mini-ITX mainboards, the VIA EPIA CN Mini-ITX gives developers and system integrators the essential tools to create innovative and flexible digital media appliances.
