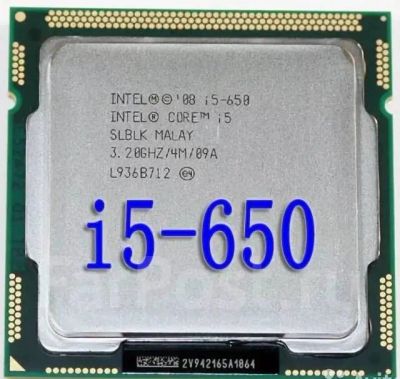

Core i5-650

• General information Type
• CPU / Microprocessor Market segmentDesktop FamilyIntel Core i5 Model number i5-650 CPU part numbersCM80616003174AH is an OEM/tray microprocessor
• BX80616I5650 is a boxed processor with fan and heatsink (English version)
• BXC80616I5650 is a boxed processor with fan and heatsink (Chinese version)

Frequency

3.2 GHz / 3200 MHz Maximum turbo frequency3.467 GHz / 3467 MHz Bus speed 2.5 GT/s Direct Media Interface Clock multiplier 24 Package1156-land Flip-Chip Land Grid Array (FC-LGA10) Socket Socket 1156 / H1 / LGA1156 Size1.48" x 1.48" / 3.75cm x 3.75cm Weight0.9oz / 24.6g (CPU)

11.4oz / 324g (box) Fan/heatsinkE41997-002 Introduction date January 7, 2010 End-of-Life dateLast order date is June 29, 2012

Last shipment date for tray processors is December 7, 2012 Price at introduction$176

S-spec numbers

Part number ES/QS processors Production processors Q3GN Q4DC SLBLK SLBTJ BX80616I5650 ++ BXC80616I5650 ++ CM80616003174AH++++

Architecture / Microarchitecture

Instruction setx86 MicroarchitectureWestmere Processor core Clarkdale Core stepping ? C2

K0 CPUIDs20652 Manufacturing process0.032 micron

382 million transistors (CPU die)

177 million transistors (IMC / graphics die) Die81mm2 (CPU die)

114mm2 (IMC / graphics die) Data width64 bit The number of CPU cores2 The number of threads4 Floating Point UnitIntegrated Level 1 cache size ? 2 x 32 KB 4-way set associative instruction caches

• 2 x 32 KB 8-way set associative data caches Level 2 cache size 2 x 256 KB 8-way set associative caches Level 3 cache size4 MB 16-way set associative shared cache Physical memory16 GB MultiprocessingUniprocessor Extensions & TechnologiesMMX instructions
• SSE / Streaming SIMD Extensions
• SSE2 / Streaming SIMD Extensions 2
• SSE3 / Streaming SIMD Extensions 3
• SSSE3 / Supplemental Streaming SIMD Extensions 3
• SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
• AES / Advanced Encryption Standard instructions
• EM64T / Extended Memory 64 technology / Intel 64
• HT / Hyper-Threading technology
• VT-d / Virtualization for directed I/O
• VT-x / Virtualization technology
• TBT / Turbo Boost technology
• Security FeaturesNX / XD / Execute disable bit
• TXT / Trusted Execution technology

Low power featuresEnhanced SpeedStep technology

Integrated Graphics Processing Unit

GPU TypeHD (Westmere) Base frequency (MHz)733

Integrated peripherals / components

Display controller2 displays Memory controllerThe number of controllers: 1

Memory channels (per controller): 2

Memory channels (total): 2

• Supported memory: DDR3-1066, DDR3-1333
• Other peripherals Direct Media Interface
• PCI Express 2.0 interface

Electrical / Thermal parameters

V core 0.65V - 1.4V Minimum/Maximum operating temperature 5°C - 72.6°C Maximum power dissipation ? 170.83 Watt (peak)

128.71 Watt (sustained) Thermal Design Power 73 Watt Notes on Intel Core i5-650
