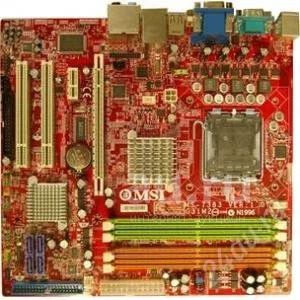

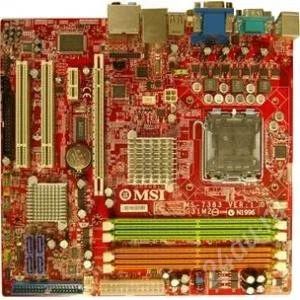

Материнская плата MSI G31M2 (MS-7383)
Продан по цене «Купить сейчас».
6 сен 2012 07:47
Этот лот уже не продается, но мы нашли для вас похожие
Материнская плата MSI G31M2 (MS-7383)
Текущая цена
950 руб.
Блиц-цена
950 руб.
Текущая цена
950 руб.
Победитель
1
Блиц-цена
950 руб.
Продан по Блиц-цене(6 сен 2012 07:47)
1 человек минимальное кол-во участников торгов
Описание
Состояние | Б/у |
Производитель материнской платы | Micro-Star |
Производитель процессора | Intel |
Сокет | LGA 775 (Socket T) |
Комплектующее для | Компьютера |
Форм-фактор | Другое |
CPU
• Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package.
• Supports Intel® Yorkfield, Wolfdale.
• Supports FSB 1333/1066/800 MHz.
Chipset
• Intel® G31 Chipset
- Supports FSB 800/1066/1333MHz.
- Supports dual channel, DDR2 667/800.
- Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
- Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:75Hz
• Intel® ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 3.0 compliant.
Main Memory
• Supports four unbuffered DIMM of 1.8 Volt DDR2 DRAM
• Supports up to 4GB memory size.
• Supports dual channel DDR2 memory architecture.
• Supports DDR2 667/800 memory interface.
Slots
• One PCI Express 16X slot (PCI Express Bus SPEC V1.1 compliant) (when the mainboard supports DVI, the speed will down to PCIE x8)
• One PCI Express x1 slot. (support PCI Express Bus specification v1.1 compliant)
• Two 32-bit PCI v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.
On-Board IDE/SATA
• One Ultra DMA 66/100 IDE controller integrated in ICH7.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
• SATAII controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports.
Audio
• Chip integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.
LAN
• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111B.
TPM (Trusted Platform Module)
• The Trusted Platform Module Solution-
Internal I/O Connectors
- ATX 24-Pin power connector
- ATX 4-pin ATX power connector
- CPU x1/ System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x SPDIF-out pinheader
- 1 x chasis intrusion connector
- 1 x Parallel port pinheader
- 2 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 4 x Serial ATAII connectors
- 1 x ATA100 connector
• Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package.
• Supports Intel® Yorkfield, Wolfdale.
• Supports FSB 1333/1066/800 MHz.
Chipset
• Intel® G31 Chipset
- Supports FSB 800/1066/1333MHz.
- Supports dual channel, DDR2 667/800.
- Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
- Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:75Hz
• Intel® ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 3.0 compliant.
Main Memory
• Supports four unbuffered DIMM of 1.8 Volt DDR2 DRAM
• Supports up to 4GB memory size.
• Supports dual channel DDR2 memory architecture.
• Supports DDR2 667/800 memory interface.
Slots
• One PCI Express 16X slot (PCI Express Bus SPEC V1.1 compliant) (when the mainboard supports DVI, the speed will down to PCIE x8)
• One PCI Express x1 slot. (support PCI Express Bus specification v1.1 compliant)
• Two 32-bit PCI v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.
On-Board IDE/SATA
• One Ultra DMA 66/100 IDE controller integrated in ICH7.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
• SATAII controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports.
Audio
• Chip integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.
LAN
• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111B.
TPM (Trusted Platform Module)
• The Trusted Platform Module Solution-
Internal I/O Connectors
- ATX 24-Pin power connector
- ATX 4-pin ATX power connector
- CPU x1/ System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x SPDIF-out pinheader
- 1 x chasis intrusion connector
- 1 x Parallel port pinheader
- 2 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 4 x Serial ATAII connectors
- 1 x ATA100 connector
