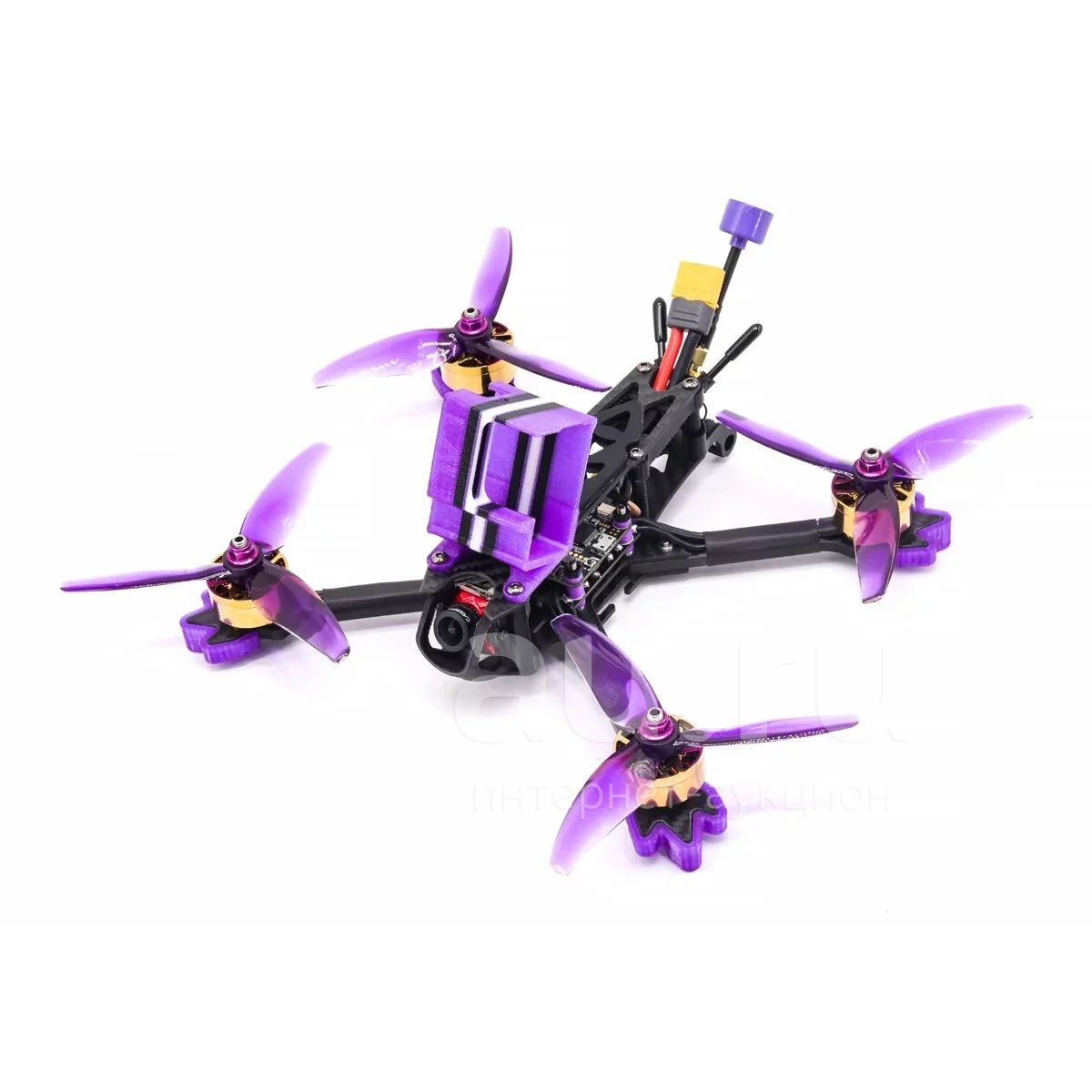

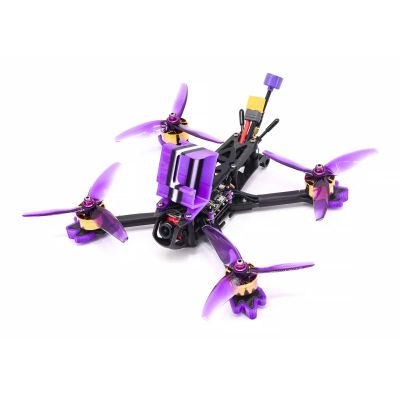

Гоночный Квадрокоптер Eachine LAL 5style 220mm 6S

Новый гоночный коптер 5 дюймов

Eachine LAL 5style 220mm 6S Freestyle 5 Inch FPV Racing Drone PNP/BNF F4 Bluetooth FC Caddx Ratel 2307 1850KV Motor 50A Blheli_32 ESCReceiver: FrSky R-XSR Receiver

The LAL series comes with a new 5style fpv racing drone.

It means 5 Inch freestyle fpv racing drone reached a new level of cost-effective and appearance.

Made with more TPU protection parts , smooth power system and more different receiver version to convenient your selection. PNP and BNF version has ready and you will love flying it . Let's enjoy the 5style!

 Note: TPU Camera mount for Gopro and Gopro7 camera show on the photo are not included. Camera mount will sale in spare part.

 Specification:

Brand name: Eachine

Item name: LAL 5style 220mm 6S Freestyle 5 Inch FPV Racing Drone

Drone weight: 395.20g (Without Battery)

Frame KitWheelbase: 225mm

Bottom plate: 2mm

Upper plate: 2mm

Arm plate: 5mm

X plate: 2mm

MotorMode: 2307

KV: 1850

Idle current (IO/10V): 1.1A

No.of Cells(Lipo): 3-6S

Peak current: 40A

Max. power: 960W

Max. thrust: 1427g (6S/5″)

Configu-ration:12N14P

Internal Resistance(Rm): 0.0792Ω

Stator diameter: 23mm

Stator thickness: 7mm

Motor diameter: 28.5mm

Motor length: 19.7mm

Shaft length: 34.2mm

Shaft diameter: φ5mm

Motor mount hole size: M3

Install hole distance: 16*16mm

Recommend propeller: 5-7 Inch

Weight: 36g

ESC

50A 3-6S Blheli_32 DSHOT1200 4 IN 1 ESC

Continue current: 50A

Burst current: 60A (10s)

Input voltage: 3-6S

BEC: NO

Current sensor: YES

Main control chip: STM32F051

Firmware: Blheli_32

Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOT

MOS: 5X6

Installation hole: 30.5x30.5mm/φ3

Dimension: 49x37mm

Weight: 13.5g

Flight Controller

LAL-F405 BT Flight Controller

Main control chip: STM32F405

IMU: MPU6000 (By SPI)

Input voltage: 2-6S

Firmware: MATEKF405

Barometer: BMP280

Integrated OSD , support DMA mode (use F4 MCU control OSD)

Support Betaflight configure

BEC: 5V/2A ; 10V/2A

Reserve MicroSD BlackBox

5 serial ports and I2C interface are reserved to facilitate GPS access (Bluetooth occupies TX5.RX5)

Support receiver (PPM / DSM / IBUS / SBUS, SUMH, SUMD, SPEKTURM1024/2048, XBUS )

Supports programmable LED Sprit

Supported firmware: betaflight / cleanflight / inav

Reserved buzzer interface

BAT and CRT, can monitor battery voltage and current (need additional current sensor)

Install hole: 30.5x30.5mm

Weight: 5.9g

CameraCaddx Ratel 1200TVL Camera

Brand Name: Caddx

Item Name: Ratel

Color: Red

Lens: 2.1mm

Image Sensor: 1/1.8" Inch starlight HDR sensor

Horizontal Resolution: 1200TVL

FOV: 180 Degree

Min. Latency: 8ms

TV System: NTSC & PAL (changeable)

Image: 16:9 & 4:3 (changeable)

WDR: Super WDR (HDR)

Min. Illumination: Starlight

Synchronization: Internal

Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio: >60dB (AGC OFF)

Video Output: CVBS

Camera OSD: Separate OSD

DNR: 3-DNR

Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN

Day/Night: Auto/Color/B&W/EXT

Dimensions: 19mm*19mm*19mm

Wide Power Input: DC 5-40V

Work Temperature: -20℃~+60℃

Work Humidity: 20%~80%

Weight: 8g (N.W.)/ 40.5g (G.W.)

VTX

TX805 /5.8G 40CH 25/200/600/800mw VTX

Frequency: 5.8G

Channels: 40CH

Input voltage: 7V~24V

5V camera power: 120mA(MAX)----25mW@12V

5V camera power: 200mA(MAX)----200mW@12V

5V camera power: 300mA(MAX)----600mW@12V

5V camera power: 350mA(MAX)----800mW@12V

Support TBS Smart Audio

Power supply: 5V / 3A output for Camera

Output power: 25mW/200mW/600/800mW switchable

Antenna connector: MMCX

Dimensions: 36X22X5mm 30.5hole

Weight: 8g(Withour antenna)

Propeller

Racerstar 5046 3-blade

Meterial: PC

Blade: 3

Color: Transparent

Center thickness: 7mm

Propeller diameter: 127mm

Weight: 5.1g/pc

 Package Included:

1 x LAL 5style 220mm 6S Freestyle 5 Inch FPV Racing Drone

4 x CW 5046 Propeller

4 x CCW 5046 Propeller

1 x Retail Box

Все описание ниже:

https://m.banggood.com/Eachine-LAL-5style-220mm-6S-Freestyle-5-Inch-FPV-Racing-Drone-PNP-or-BNF-F4-Bluetooth-FC-Caddx-Ratel-2307-1850KV-Motor-50A-Blheli_32-ESC-p-1672891.html?rmmds=orderdetail

14 тыс. руб.

В наличии x 4шт
