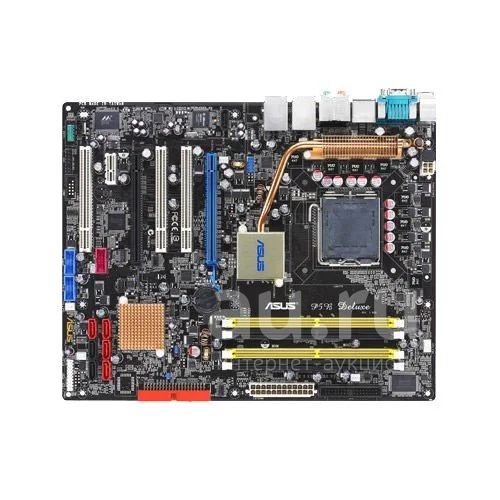

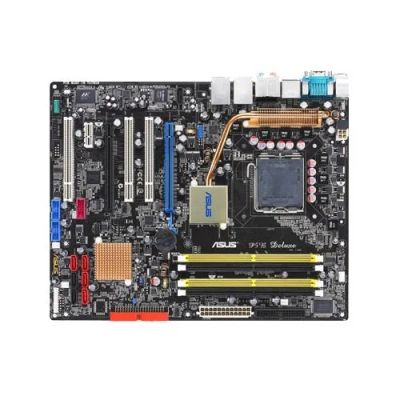

Материнская плата ASUS P5B Deluxe с процессором Intel Core2 6600 2.4GHz и радиатором
Продан по цене «Купить сейчас».
17 дек 2020 07:28
Этот лот уже не продается, но мы нашли для вас похожие
Материнская плата ASUS P5B Deluxe с процессором Intel Core2 6600 2.4G...
Текущая цена
1 201 руб.
Блиц-цена
1 201 руб.
Текущая цена
1 201 руб.
Победитель
1
Блиц-цена
1 201 руб.
Продан по Блиц-цене(17 дек 2020 07:28)
1 человек минимальное кол-во участников торгов
Описание
Состояние | Б/у |
Производитель материнской платы | ASUS |
Производитель процессора | Intel |
Сокет | LGA 775 (Socket T) |
Комплектующее для | Компьютера |
Форм-фактор | ATX |
- CPU
- LGA775 socket for Intel® Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron® D Processors
- Compatible with Intel® 05B/05A/06 processors
- Intel® Hyper-Threading Technology ready
- * Refer to www.asus.com for Intel CPU support list
- Chipset
- Intel® P965 / ICH8R with Intel® Fast Memory Access Technology
- Front Side Bus
- 1066 / 800 / 533 MГц
- Memory
- 4 x DIMM, max. 8GB, DDR2 800 / 667 / 533 MHz, non-ECC, un-buffered memory
- Dual channel memory architecture
- * Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
- Expansion Slots
- 2 x PCI-E x16 (blue @ x16 mode, black @ x2 or x4 mode)
- 1 x PCI-E x1 (x1 or diabled mode)
- 3 x PCI 2.2
- Storage
- Southbridge
- - 6 x SATA 3.0 Gb/s ports
- - Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10.
- JMicron® JMB363 PATA and SATA controller
- - 1 x UltraDMA 133/100/66 for up to 2 PATA devices
- - 1 x Internal SATA 3.0 Gb/s port
- - 1 x External SATA 3.0 Gb/s port (SATA On-the-Go)
- - Support SATA RAID 0, 1 and JBOD
- LAN
- Dual Gigabit LAN controllers, both featuring AI NET2
- Marvell® PCI-E and PCI Gigabit LAN controllers
- Audio
- ADI® AD1988B 8-channel High Definition Audio CODEC
- - Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
- - Coaxial / Optical S/PDIF out ports at back I/O
- - ASUS Noise Filter
- - ASUS Array Mic
- - DTS Connect™
- IEEE 1394
- TI® 1394a controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)
- USB
- 8 x USB2.0 ports (4 ports at mid-board, 4 ports at back panel)
- ASUS AI Lifestyle Features
- ASUS Quiet Thermal Solution:
- - ASUS AI Gear
- - ASUS AI Nap
- - ASUS 8-Phase Power Design
- - ASUS Fanless Design: Heat-pipe solution
- - ASUS Fanless Design: Stack Cool 2
- - ASUS Q-Fan 2
- - ASUS Optional Fan for Water-cooling or Passive-Cooling only
- ASUS Crystal Sound:
- - ASUS Noise Filter
- - ASUS Array Mic
- ASUS EZ DIY:
- - ASUS Q-Connector
- - ASUS O.C. Profile
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 2
- - ASUS Power LED
- Other ASUS Special Features
- ASUS MyLogo 2
- Multi-language BIOS
- Overclocking Features
- Intelligent overclocking tools:
- - AI NOS™ (Non-delay Overclocking System)
- - AI Overclocking (intelligent CPU frequency tuner)
- - ASUS PEG Link - Automatically performance tuning for graphics card
- - ASUS AI Booster utility
- Precision Tweaker:
- - vCore: Adjustable CPU voltage at 0.00625V increment
- - vDIMM: 13-step DRAM voltage control
- - vChipset: 4-step Chipset voltage control
- SFS (Stepless Frequency Selection)
- - FSB tuning from 100MHz up to 650MHz at 1MHz increment
- - Memory tuning from 533MHz up to 1066MHz
- - PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
- Overclocking Protection:
- - ASUS C.P.R.(CPU Parameter Recall)
- Back Panel I/O Ports
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x Serial port
- 1 x S/PDIF Out (Coaxial + Optical)
- 1 x External SATA
- 1 x IEEE1394a
- 2 x RJ45 port
- 4 x USB 2.0/1.1
- 8-Channel Audio I/O
- Internal I/O Connectors
- 2 x USB connectors support additional 4 USB ports
- 1 x Floppy disk drive connector
- 1 x IDE connector
- 7 x SATA connectors
- 1 x CPU Fan connector
- 3 x Chassis Fan connector
- 1 x Power Fan connector
- 1 x IEEE1394a connector
- Front panel audio connector
- 1 x Azalia Digital Header
- 1 x S/PDIF Out Header
- Chassis Intrusion connector
- CD audio in
- 24-pin ATX Power connector
- 2 x 4-pin ATX 12V Power connector
- System Panel
- BIOS
- 8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
- Manageability
- WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
