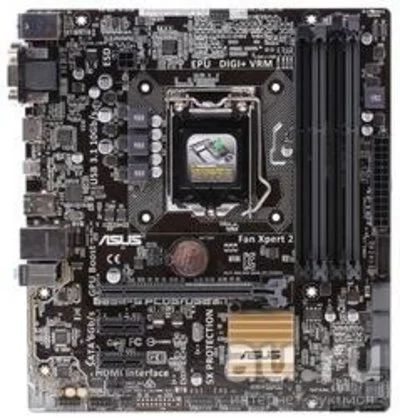

comp.mb.#606 Игровая материнская плата ASUS B85M-G PLUS | LGA1150 | 4*DDR3 | USB3.0 | VGA (D-SUB) | DVI | HDMI | PCI-Express 3.0 x16 (Для новейшей видеокарты) | H3 | SATA3 (6Gb/s) SATAiII

• Процессор
• Intel® Socket 1150 for New 4th Generation Core™ i7/Core™ i5/Core™ i3/Celeron® dual-core/Pentium®/Celeron® Processors
•

• *Refer to www.asus.com for CPU support list
• Supports Intel® 22 nm CPU
• Supports Intel® Turbo Boost Technology 2.0
• * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Чипсет - Intel® B85

Оперативная память

• 4 x DIMM, Max. 32Гб, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• *Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• Supports Intel® Extreme Memory Profile (XMP)
• *Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).
• * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Графика

• Integrated Graphics Processor
• Multi-VGA output support : HDMI/DVI/RGB ports
• - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
• - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
• Maximum shared memory of 1024 MB
• Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Supports up to 3 displays simultaneously

Слоты расширения

• 1 x PCIe 3.0/2.0 x16
• 2 x PCIe 2.0 x1
• Хранилище данных
• Intel® B85 chipset :
• 4 x SATA 6Gb/s port(s), (Gray),
• 2 x SATA 3Gb/s port(s), (Black),
• Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

Локальная сеть

• Realtek® 8111GR, 1 x Gigabit LAN Controller(s)

Аудио

• Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
• - Supports : Jack-detection, Front Panel Jack-retasking, Anti-pop Function
• Audio Feature :
• - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
• - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
• - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• Порты USB
• Intel® B85 chipset :
• 4 x USB 3.1 Gen 1 port(s) (2 at back panel, (Blue), 2 at mid-board)
• Intel® B85 chipset :
• 6 x USB 2.0 port(s) (2 at back panel, (Black), 4 at mid-board)
• ASMedia® USB 3.1 controller :
• 1 x USB 3.1 Gen 2 port(s) (1 at back panel, navy blue, Type-A)
• ASMedia® USB 3.1 controller :
• 1 x USB 3.1 Gen 2 port(s) (1 at back panel, (Black), USB Type-CTM)

Поддержка операционной системы

• Windows 7
• Windows 8
• Windows® 8.1

Разъемы на задней панели

• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 1 x USB 3.1 Gen 2 (teal blue)Type-A
• 1 x USB 3.1 Gen 2 ((Black))USB Type-CTM
• 2 x USB 3.1 Gen 1 ((Blue))
• 2 x USB 2.0
• 3 x Audio jack(s)

Разъeмы на плате

• 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 2 x SATA 3Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)
• 1 x Chassis Intrusion connector(s)
