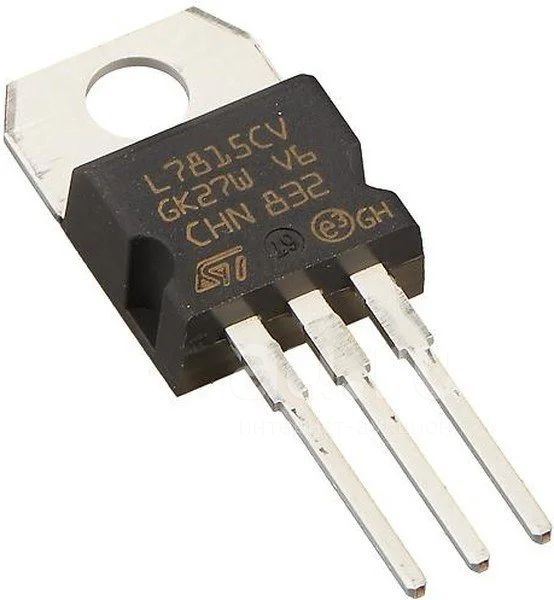

Микросхема L7815CV, Стабилизатор напряжения +15В, 1.5А, 4%, (0...+125C), TO-220

L78 Series Linear Voltage Regulator, STMicroelectronics

STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.<BR/>

Полярность

положительная

Тип выхода

фиксированный

Количество выходов

1

Выходное напряжение, В

15

Максимальный ток нагрузки, А

1.5

Падение напряжения при Iвых, В (А)

2(1)

Максимальное входное напряжение, В

35

Рабочая температура,°C

0…+125

Корпус

to-220sg

Вес, г

2.5
