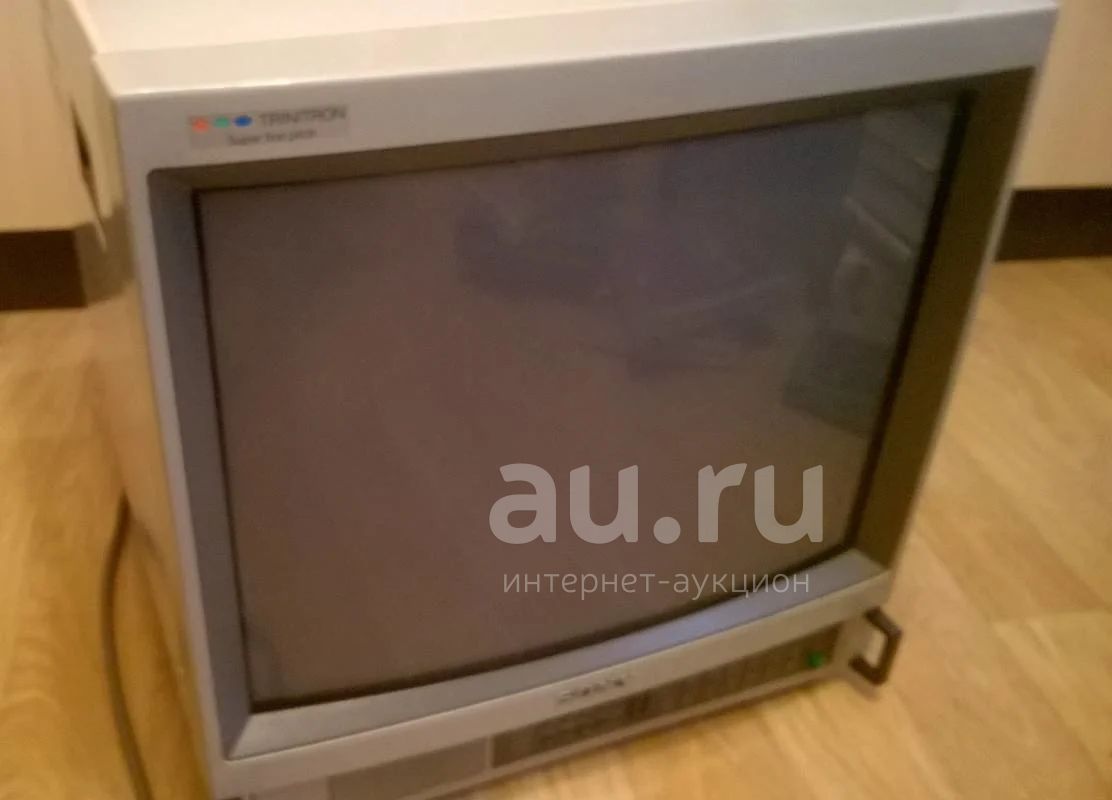

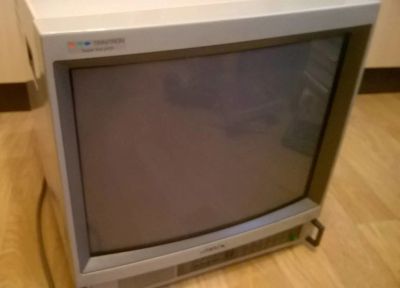

Монитор Sony PVM-1943MD

Sony PVM-1943MD, медицинского класса, 19", эндоскопический!

Signal Performance

Color System

NTSC, PAL automatically selected

Resolution

600TV lines at center

Aperture Correction

0 ~ +6dB

Synchronization

AFC time constant 1.0mS

Line Pull Range

>H ± 500Hz V -8Hz

Frequency Response

LINE 10.0MHz (±3DB) * Y signal only RGB 10.0MHz (±3dB)

Picture and Performance

CRT

19” CRT with P-22 phosphor, Visible picture size

479.8mm (18” diagonally)

AG Pitch

0.4mm

Normal Scan

7% over scan

Over Scan

20% over scan

Under Scan

5% under scan

H Linearity

less than 5% (typical)

V Linearity

less than 5% (typical)

Convergence

Center 19” less than 064mm (typical) Peripheral 19” less than 1.0mm (typical)

Raster Size Stability

H less than 1.0% V less than 1.5%

Color Temperature

6500K, 5600K, 9300K, USER: factory adjusted to 6500K adjustable range:3200K-10000K

Component/RGB

BNC (x 3)

Ext. Sync

BNC (x 1)
