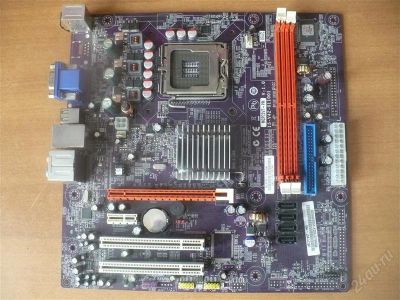

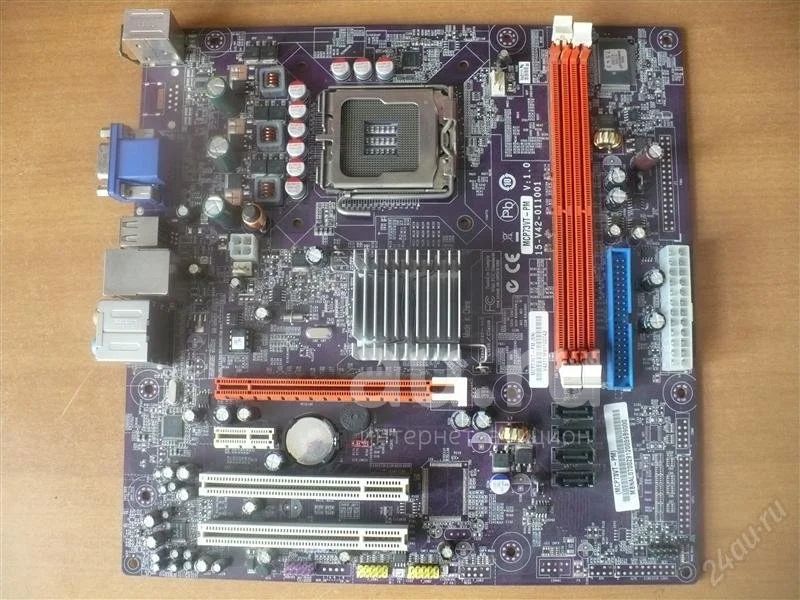

ECS MCP73VT-PM
Продано.
25 июня 2013 07:32
Этот лот уже не продается, но мы нашли для вас похожие
Текущая цена
100 руб.
Победитель
1
Продан(25 июня 2013 07:32)
1 человек минимальное кол-во участников торгов
Описание
Состояние | Неисправно |
Производитель материнской платы | Elitegroup (ECS) |
Сокет | LGA 775 (Socket T) |
Комплектующее для | Компьютера |
мать не работает, отгорела дорожка, включается и через секунду отклучается.
ocumented General Info:
Processor
• Socket LGA775 for Intel Core™ 2 Duo / Pentium® D Processor
• FSB 1333/1066/800/533 MHz
• Support Hyper-Threading Technology
Chipset
• Single chipset: GeForce7050 / 610i (MCP73V)
Memory
• Single-channel DDR2 memory architecture
• 2 x 240-pin DDR DIMM socket support up to 8 GB
• Support DDR2 667/533/400 DDR2 SDRAM
Audio
• Realtek ALC888/1200 8-channel HD Audio codec
• Compliant with HD audio specification
Storage
• Support by NVIDIA GeForce 7050/610I
- 1 x Ultra DMA133/100/66 port
-4 x Serial ATAII 3.0Gb/s devices
• RAID 0, RAID 1 configuration
Peripheral Interface [Internal/Rear Panel]
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
1 x IDE connector
4 x Serial ATA connectors
3 x USB 2.0 headers support additional 6 USB ports
1 x Front panel switch/LED header
1 x Front panel audio header
1 x S/PDIF out header, 1 x CD-in header
CPUFAN/SYSFAN connectors
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Serial port (COM1)
1 x VGA port
1 x RJ45 LAN connector
4 x USB ports
1 x Audio port 8 CH 6 JACKS
Expansion Slots
• 1 x PCI Express x1 slot
• 1 x PCI Express x16 slot
• 2 x PCI slots
BIOS
• AMI BIOS with 8Mb SPI ROM
• Supports Plug and Play , ACPI& DMI
• Supports STR(S3)& STD(S4)
Onboard LAN
• Realtek RTL8101E Family PCI-E Fast Ethernet NIC
Video
• On Chip NVIDIA GeForce 7 Series Graphics Processing Unit (GPU)
• Share Memory: Maximum up to 256MB
Form Factor
microATX (9.60 inches by 9.60 inches [244 millimeters by 244 millimeters])
Other
• For more info on this motherboard, download the manual in the download section.
ocumented General Info:
Processor
• Socket LGA775 for Intel Core™ 2 Duo / Pentium® D Processor
• FSB 1333/1066/800/533 MHz
• Support Hyper-Threading Technology
Chipset
• Single chipset: GeForce7050 / 610i (MCP73V)
Memory
• Single-channel DDR2 memory architecture
• 2 x 240-pin DDR DIMM socket support up to 8 GB
• Support DDR2 667/533/400 DDR2 SDRAM
Audio
• Realtek ALC888/1200 8-channel HD Audio codec
• Compliant with HD audio specification
Storage
• Support by NVIDIA GeForce 7050/610I
- 1 x Ultra DMA133/100/66 port
-4 x Serial ATAII 3.0Gb/s devices
• RAID 0, RAID 1 configuration
Peripheral Interface [Internal/Rear Panel]
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
1 x IDE connector
4 x Serial ATA connectors
3 x USB 2.0 headers support additional 6 USB ports
1 x Front panel switch/LED header
1 x Front panel audio header
1 x S/PDIF out header, 1 x CD-in header
CPUFAN/SYSFAN connectors
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Serial port (COM1)
1 x VGA port
1 x RJ45 LAN connector
4 x USB ports
1 x Audio port 8 CH 6 JACKS
Expansion Slots
• 1 x PCI Express x1 slot
• 1 x PCI Express x16 slot
• 2 x PCI slots
BIOS
• AMI BIOS with 8Mb SPI ROM
• Supports Plug and Play , ACPI& DMI
• Supports STR(S3)& STD(S4)
Onboard LAN
• Realtek RTL8101E Family PCI-E Fast Ethernet NIC
Video
• On Chip NVIDIA GeForce 7 Series Graphics Processing Unit (GPU)
• Share Memory: Maximum up to 256MB
Form Factor
microATX (9.60 inches by 9.60 inches [244 millimeters by 244 millimeters])
Other
• For more info on this motherboard, download the manual in the download section.
