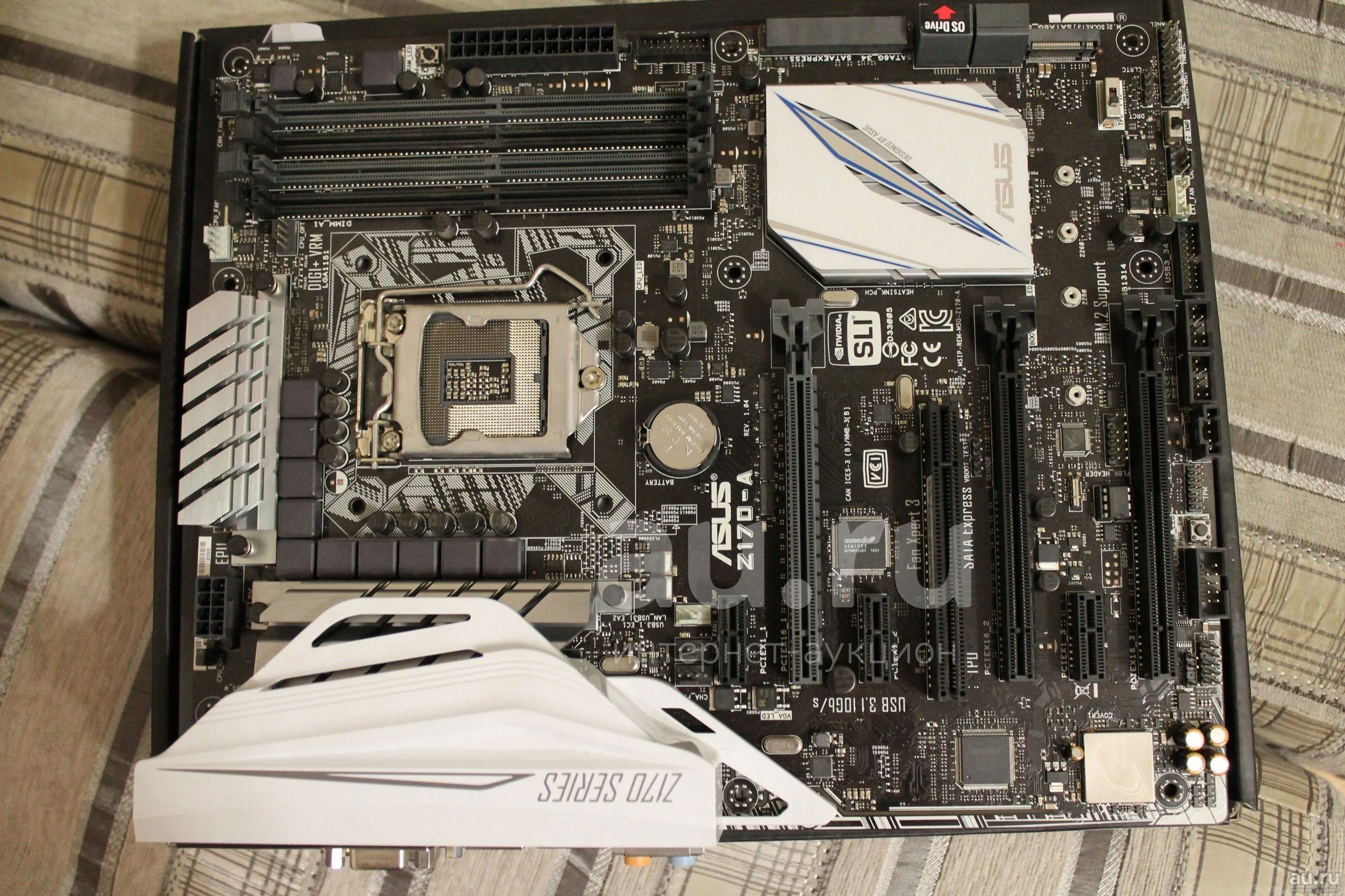

Материнская плата Asus Z170-A

Чипсет

Intel® Z170

Оперативная память

4 x DIMM, Max. 64Гб, DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

*Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Supports Intel® Extreme Memory Profile (XMP)

*Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).

Графика

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

- Supports DisplayPort with max. resolution 4096 x 2304 @ 24 Hz / 4096 x 2304 @ 60 Hz

Maximum shared memory of 512 MB

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Supports up to 3 displays simultaneously

DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Поддержка технологий Multi-GPU

Supports NVIDIA® Quad-GPU SLI™ Technology

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD Quad-GPU CrossFireX™ Technology

Supports AMD 3-Way CrossFireX™ Technology

Слоты расширения

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)

1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1

3 x PCIe 3.0/2.0 x1

1 x PCI

Хранилище данных

Intel® Z170 chipset :

1 x SATA Express port, , Compatible with 2 x SATA 6.0 Gb/s ports

1 x M.2 x4 Socket 3, *2, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*3

6 x SATA 6Gb/s port(s), (Gray)

Support Raid 0, 1, 5, 10

Supports Intel® Smart Response Technology*4

Локальная сеть

Intel® I219V, 1 x Gigabit LAN Controller(s),

Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance

ASUS Turbo LAN Utility

ASUS LAN Guard

Аудио

Realtek® ALC892 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

Audio Feature :

- DTS Connect

- DTS Studio Sound

- Optical S/PDIF out port(s) at back panel

- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Audio amplifier: Provides the highest-quality sound for headphone and speakers

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

- Top notch audio sensation delivers according to the audio configuration

- EMI protection cover to prevent electrical noise to affect the amplifier quality

- Absolute Pitch 192khz/24bit true BD lossless sound

- Power pre-regulator: Reduces power input noise to ensure consistent performance

Separate layer for left and right track, ensuring both sound deliver equal quality

Порты USB

Intel® Z170 chipset :

6 x USB 3.1 Gen 1 port(s) (2 at back panel, (Blue), 4 at mid-board)

Intel® Z170 chipset :

6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

ASMedia® USB 3.1 controller :

1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-CTM)

ASMedia® USB 3.1 controller :

1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A)

· Эксклюзивные особенности

OC Design - ASUS PRO Clock Technology

- Full BCLK range for extreme overclocking performance

5-Way Optimization by Dual Intelligent Processors 5

- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

ASUS 5X Protection II :

- ASUS LANGuard - 2.5X higher surge tolerance

- ASUS Overvoltage Protection - World-class circuit-protecting power design

- ASUS DIGI+ VRM - 8 Phase digital power design

- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits

- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability

ASUS TPU :

- Auto Tuning

- GPU Boost

- TPU switch

ASUS EPU :

- EPU

ASUS Digital Power Design :

- Industry leading Digital 8 Phase Power Design

- CPU Power Utility

ASUS Exclusive Features :

- Remote GO!

- AI Suite 3

- Anti-Surge

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

- USB 3.1 Boost

- Disk Unlocker

- Turbo LAN

- Crystal Sound 3

- EZ XMP ASUS Exclusive Features

- Mobo Connect

- PC Cleaner

Remote Entertainment

- Media Streamer

- HyStream

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

ASUS EZ DIY :

- ASUS O.C. Tuner

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- Push Notice

ASUS Q-Design :

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

Special Memory O.C. Design

Overclocking Protection :

- ASUS C.P.R.(CPU Parameter Recall)

Media Streamer

Turbo App

Fan Xpert 3

Поддержка операционной системы

Windows 7 32-битная/64-битная

Windows® 10 64-битная

Windows® 8.1 64-битная

Разъемы на задней панели

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

1 x USB 3.1 Gen 2 ()USB Type-CTM

1 x USB 3.1 Gen 2 (teal blue)Type-A

2 x USB 3.1 Gen 1 ((Blue))

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

Разъeмы на плате

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports

1 x M.2 Socket 3

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x CPU OPT Fan connector(s) (1 x 4 -pin)

4 x Chassis Fan connector(s) (4 x 4 -pin)

1 x S/PDIF out header(s)

1 x Thunderbolt header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x EZ XMP switch

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s) (Q-Connector)

1 x DRCT header(s)

1 x MemOK! button(s)

1 x Thermal sensor connector(s)

1 x TPU switch(es)

1 x Power-on button(s)

1 x Clear CMOS jumper(s)

1 x 5-pin EXT_FAN(Extension Fan) connector

1 x USB BIOS Flashback Card header

1 x Water Pump header (4-pin)

1 x 14-1 pin TPM connector

Аксессуары

User's manual

I/O Shield

3 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x CPU installation tool

1 x Supporting DVD

1 x SLI bridge(s)

1 x Q-connector(s) (1 in 1)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Администрированиe

WfM 2.0, DMI 3.0, WOL by PME, PXE

Диск с драйверами

Drivers

ASUS Utilities

EZ Update

Anti-virus software (OEM version)

Форм-фактор

ATX Form Factor (Brown)

12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
