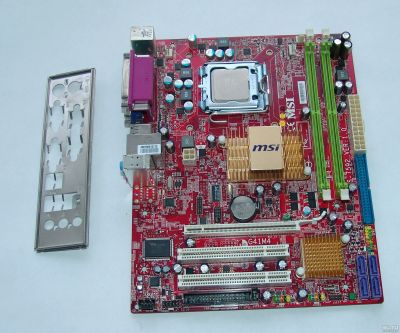

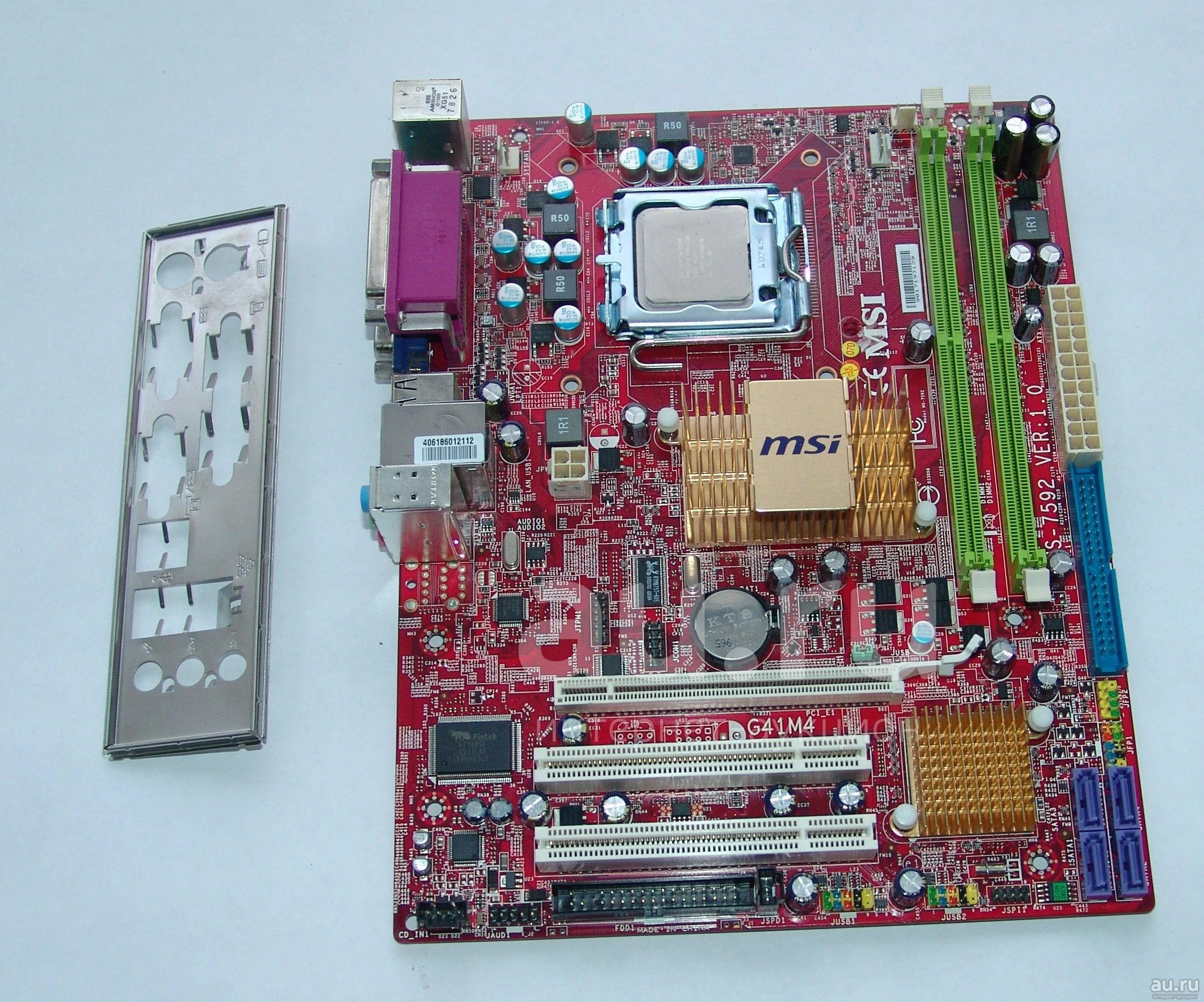

Материнская плата MSI G41M4-F MS-7592 Ver 1.0 LGA775 + CPU E5300

Материнская плата полностью проверена на установленной Windows.

В комплекте Материнская плата (с задней планкой) + Процессор Intel Pentium E5300

Гарантия 7 дней.

CPU

• Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package.
• Supports Intel® Yorkfield, Wolfdale in the LGA775 package.
• Supports Intel® next generation 45nm multi-core processors
• Supports FSB 1333/1066/800 MHz.
• Supports VRD 11.1 standard.
• Supports FMB 05a@95W

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® G41 Chipset
• Supports FSB 800/1066/1333 MHz.
• Integrated Intel Graphics Media Accelerator (Intel® GMA X4500)
• Supports Microsoft® DirectX 10
• Intel® ICH7 Chipset
• Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
• 4 SATAII ports with transfer rate up to 3Gb/s.
• PCI Master v2.3, I/O APIC.
• ACPI 2.0 compliant.

Main Memory

• Supports two unbuffered DIMM of 1.8 Volt DDR2 667/800 DRAM, 8GB Max

Slots

• One PCI Express x16 slot (PCI Express Bus SPEC V1.0 compliant).
• Two 32-bit v2.3 master PCI bus slots.
• Support 3.3v/5v PCI bus interface.

On-Board IDE/SATA

• One Ultra DMA 66/100 IDE controller integrated in Intel® ICH7.
• Supports PIO, Bus Master operation modes.
• Can connect up to two Ultra ATA drives.​
• SATAII controller integrated in ICH7 chipset
• Up to 3Gb/s transfer speed.
• Supports four SATAII ports by ICH7

Audio

• Chipset integrated by Realtek® ALC888S
• Flexible 8-channel audio with jack sensing
• Compliant with Azalia 1.0 Spec
• Meet Microsoft Vista Premium spec

LAN

• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111DL

Internal I/O Connectors

• ATX 24-Pin power connector
• 4-pin ATX 12V power connector
• CPU x1/ System x2 FAN connectors
• CD-in connector
• Front panel audio connector
• Front panel connector
• 1 x chasis intrusion connector
• 2 x USB 2.0 connectors
• 1 x Floppy disk drive connector
• 4 x Serial ATAII connectors
• 1 x ATA100 connector
• 1 x SPDIF-Out connector
• Clear CMOS Jumper
• 1 x Serial port connector
• 1 x Parallel port connector
• 1 x TPM module connector

Back Panel I/O Ports

• 1 x PS/2 keyboard
• 1 x PS/2 mouse
• 1 x Parallel port
• 1 x Serial port (COM 1)
• 1 x Graphics Card port
• 1 x 6 in 1 audio jack
• 4 x USB 2.0 ports
• 1 x RJ45 LAN jack

Dimension

• 24.4cm(L) x 19.3cm(W) mATX Form Factor
