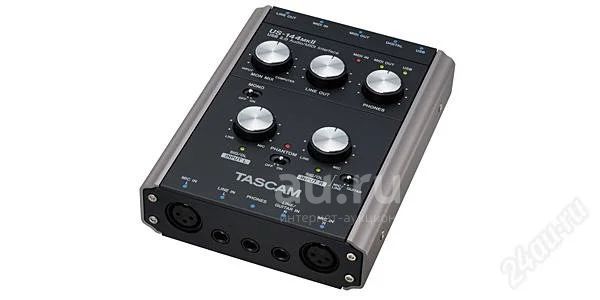

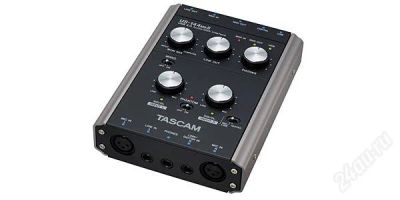

Tascam US-144 MKII (звуковая карта)

Подробное описание, правда на английском, зато подробное

Features:
Bus-powered USB 2.0 audio interface
(2) XLR microphone inputs with phantom power
(2) 1/4" balanced line inputs
Switchable guitar level input
1/4" stereo headphone output
MIDI input and output
S/PDIF stereo coaxial input and output (US-144mkII only)
Individual Line and Headphone out level controls (US-144mkII only)
Up to 96kHz/24-bit audio resolution
Zero-latency hardware monitoring
Mac and Windows drivers included
Steinberg Cubase LE4 48-track recording software included
Aluminum case construction


Specifications:
Input/Output Ratings
MIC IN (BALANCED) Terminal
Connector: XLR-3-31 equivalent
Nominal Input Level: -58 dBu (When INPUT knob is set to MIC); -14 dBu (When INPUT knob is set to LINE)
Maximum Input Level: +2dBu (When INPUT knob is set to LINE)
Input impedance: 2.2kOhms
LINE IN (Balanced) Terminal
Connector: TRS Standard phone jack
L Channel, and R channel with MIC/LINE-GUITAR set to MIC/LINE
Nominal input level: -40 dBu (When INPUT knob is set to MIC); +4 dBu (When INPUT knob is set to LINE)
Maximum input level: +20 dBu (When INPUT knob is set to LINE)
Input Impedance: 15 kOhms
R channel with MIC/LINE-GUITAR set to GUITAR
Nominal input level: -51 dBV (When INPUT knob is set to MIC); -7 dBV (When INPUT knob is set to LINE)
Maximum input level: +9 dBV (When INPUT knob is set to LINE)
Input impedance: 1 MOhm
LINE OUT (Unbalanced) terminal
Connector: RCA pin jack
Nomical output level: -10 dBV
Maximum output level: +6 dBV
Output impedance: 200 Ohms
PHONES terminal:
Connector: Standard stereo phone jack
Maximum output level: 18 mW + 18 mW or more (THD+N less than 0.1% 32 Ohm load)
DIGITAL IN (COAXIAL) Jack
Connector: RCA pin jack
Compatibl signal format: IEC60958 (S/PDIF) for consumer use
DIGITAL OUT (COAXIAL) jack
Connector: RCA pin jack
Compatible signal format: IEC60958 (S/PDIF) for consumer use and IEC 60958 (AES/EBU) for professional use
Switch using control panel
Control Input/Output
MIDI IN terminal
Connector: DIN 5 pin
Format: Standard MIDI format
MIDI OUT terminal
Connector: DIN 5 pin
Format: Standard MIDI format
USB terminal
Connector: USB B type 4 pin
Format: USB 2.0 High speed (480 MHz); USB 2.0 Full speed (12 MHz 1.1 equivalent)
Audio performance
Frequency response: 20 Hz - 20 kHz, +0.5 dB/-1.0 dB (44.1/48 kHz)(MIC to LINE OUT); 20 Hz - 40 kHz, +0.5/=1.5 dB (88.3/96 kHz)(MIC to LINE OUT)
Signal-to-noise ratio (LINE IN to LINE OUT)
Through ADC and DAC: 98 dB (When INPUT knob is set to LINE, 20 kHz LPF + A-weighted)
Direct Monitor: 107 dB (When INPUT knob is set to LINE, 20 kHz LPF + A-weighted)
Total harmonic distortion (LINE IN to LINE OUT)
Through ADC and DAC: Less than 0.0045% (When INPUT knob is set to LINE, 1 kHz +20 dBu input, 20 kHz LPF)
Direct monitor: Less than 0.002% (When INPUT knob is set to LINE, 1 KHz, +20 dBu input, 20 kHz LPF)
Computer requirements
See the TASCAM website for updated information about OS compatibility
Windows
Supported Operating system
Windows XP 32 bit SP2/SP3
Windows XP 64 SP2
Windows Vista 32 bit SP2
Windows Vista 64 bit SP2
or later
Supported computer system
Windows compatible computer with a USB port (USB 2.0 is recommended)
CPU/clock: Pentium 4 1.4 GHz or faster AMD Athlon 1.4 Ghz or faster (or equivalent preocessor)
Memory:
512 MB or more for Windows XP 32-bit and Windows Vista 32-bit
1 GB or more for Windows XP 64-bit and Windows Vista 64-bit
Macintosh
Supported operating system:
Mac OS X 10.4.11
Mac OS X 10.5.6
or later
Supported computer system:
Apple Macintosh series equipped with a USB port as standard equipment
CPU/clock: Power PC G4.1 GHz or faster, or Intel processor
Memory: 512 MB or more
General
Sampling frequency: 44.1/48/88.2/96 kHz
Sampling bit rate: 16/24 bit
Power: Suplied by USB (5V, maximum current 500 mA)
Power Consumption: 2.5w
Dmiensions: 135.4 x 179 x 47 mm (W x H x D)
Weight: 0.7 kg
Operating termperature: 5 to 35 deg C
Bundled software: Cubase LE4
