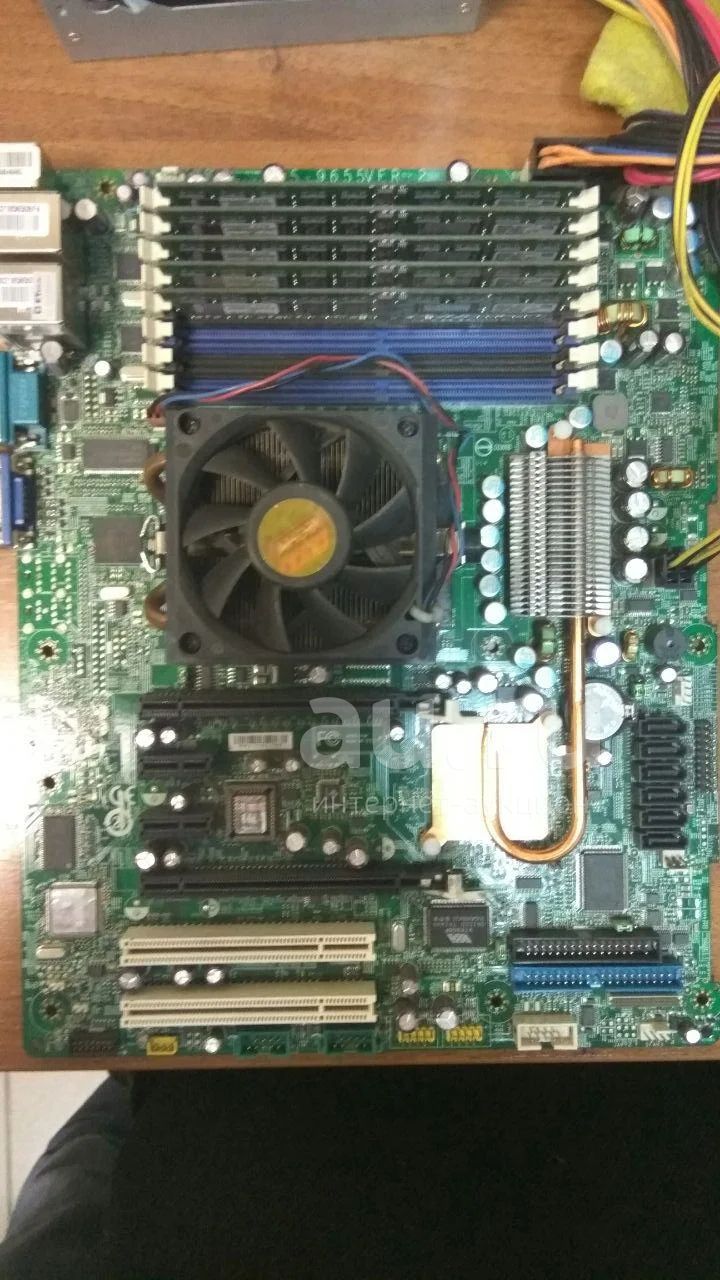

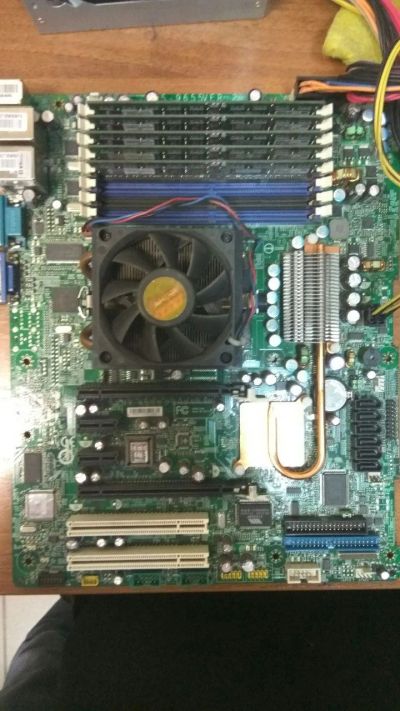

Материнская плата Серверная MSI K9NU (MS-9655) + AMD Opteron 2386 SE(4-ядра) +10Gb ECC

CPU

• 1way Quad core & Dual core AMD Opteron 2000 Series under 115W(TDP) in Socket F(1207)

• Integrated 128-bit registered DDR2 memory controller

Core Chipset

• NVIDIA nForce Professional 3400 MCP (MCP55V Pro)

Main Memory

• Supports Registered ECC DDR2 400/533/667 DIMMs slots

• 8 DDR2 DIMM slots up to 32GB memory

Slots

• 1 PCI-Express x16 slot (PCI_E1 supports x8 SLI or x16 signal)

• 1 PCI-Express x16 slot (PCI_E4 supports x8 signal)

• 2 PCI-Express x1 slots

• 2 PCI slots

HDD Interface

• IDE

- 1-channel bus master IDE port

- Supports ATA133/100/66

• SATA

- 6 SATA II ports support 6 SATA II devices

- Storage and data transfers at up to 300 MB/s

Internal I/O Connectors

Back Panel

- 1 x PS/2 mouse port

- 1 x PS/2 keyboard port

- 1 x serial port

- 1 x VGA port

- 2 x RJ-45 Gigabit LAN ports

- 4 x USB ports

- 1 x audio jack

On-Board Pinheaders

- 2 x USB connectors

- 2 x 1394 connectors

- 1 x serial port connector

- 3 x proprietary front panel connectors (optional)

- 2 x proprietary front audio connectors (optional)

Onboard LAN

• 2 Gigabit Ethernet controllers bundled into Marvell 88E1116 (MCP55V Pro)

IEEE 1394

• - VIA VT6308 IEEE 1394 controller

Onboard Audio

• Realtek ALC888 7.1-channel HDA codec

Onboard Graphics

• XGI Z7 graphics controller

• Onboard 16MB Video DRAM

System Management

• Renesas H8S/2168V IPMI microcontroller

Form Factor

• ATX form factor 12" x 9.6"

QVL

CPU Support

Socket F Shanghai 2.4G 6M C2 79W HT3 Fr2 OS2379PCP4DGI

Socket F Shanghai 2.5G 6M C2 79W HT3 Fr2 OS2381PCP4DGI

Socket F Barcelona 2P 2.1G B3 115W OS2352WAL4BGH

Socket F Barcelona 2P 2.2G 115W B3 OS2354WAL4BGH

Socket F Barcelona 2P 2.3G B3 115W OS2356WAL4BGH

Socket F Shanghai 2.3G 6M C2 115W HT3 Fr2 OS2376WAL4DGI

Socket F Shanghai 2.4G 6M C2 115W HT3 Fr2 OS2378WAL4DGI

Socket F Shanghai 2.5G 6M C2 115W HT3 Fr2 OS2380WAL4DGI

Socket F Shanghai 2.7G 6M C2 115W HT3 Fr2 OS8384WA4DGI

Socket F Shanghai 2.6G 6M C2 115W HT3 Fr2 OS2382WAL4DGI

Socket F Shanghai 2.6G 6M C2 115W HT3 Fr2 OS8382WAL4DGI

Socket F Shanghai Quad Core 2.1G 6M C2 79W(AACUC AC 0842FPCW) OS2372PAL4DGI

Socket F Shanghai Quad Core 2.2G 6M C2 79W(AACUC AC 0842MPMW) OS2374PAL4DGI

Socket F Shanghai Quad Core 2.8G 6M C2 79W(AACUC AC 0843APAW) OS2386PAL4DGI

Socket F 1.8G 1207 95W DVT Sample (Part No.ACBYF0616MPM) OSA2210GAA6CQ

Socket F 1.8G 2xxx Series F3 Sample (Part No.MCB9F0642UPAW) OSA2210GAA6CX

Socket F 2.0G 2xxx Series F3 Sample (Part No.MCBBF0640UPMW) OSA2212GAA6CX

Socket F 2.2G 2xxx Series F3 Sample (Part No.MCBBF0640SPMW) OSA2214GAA6CX

Socket F 2.2G 2M F3 Sample (Part No.CCBVF0652VPMW) OSA2214GAA6CX

Socket F 2.4G (Part No.ACBXF0611SPMW DVT Sample) OSA2214GAA6CQ

Socket F 2.4G 2xxx Series F3 Sample (Part No.MCBBF0640SPMW) OSA2216GAA6CX

Socket F 2.6G 1207 95W DVT Sample (Part No.ACBXF0610XPMW) OSA2218GAA6CQ

Socket F 2.6G 2xxx Series F3 Sample (Part No.MCBBF0640SPMW) OSA2218GAA6CX

Socket F 2.6G 2M F3 Sample (Part No.MCBBF0635WPAW) OSA2218GAA6CX

Socket F 2.6G 2M F3 Sample (Part No.MCBBF0643TPMW) OSA8218GAA6CX

Socket F 2.8G 1207 120W DVT Sample (Part No.ACBFY0619SPMW) OSY2220GAA6CQ

Socket F 2.8G Socket F 2000 Series 120W (Part No.MCBBF0635TPAW) OSY2220GAA6CX

Socket F 2.8G 2M F3 Sample (Part No.CCBVF0707WPMW) OSA2220GAA6CX

Socket F 2.8G 2M F3 Sample (Part No.MCB9F0644MPMW) OSA2220GAA6CX

Socket F 2.8G 2M F3 Sample (Part No.MCBBF0635UPMW) OSA8220GAA6CX

Socket F 3.0G 2000 Series 120W Part No.ACBAF0651XPMW) OSY2222GAA6CX

Socket F Barcelona Dual Processor B1 1.7G 68W 512K 4Cores OS2344PAL4BGC

Socket F Barcelona Dual Processor B1 1.8G 68W 512K 4Cores OS2346PAL4BGC

Socket F Barcelona Dual Processor B1 1.9G 95W 512K 4Cores OS2347WAL4BGC

Socket F Barcelona Dual Processor B1 2G 95W 512K 4Cores OS2350WAL4BGC

Socket F Barcelona 2.1G 95W B2 (Part No.VAALB AA U74R700) 2S210805L4BGD

Socket F Barcelona Dual Processor B2 2.2G 95W 512K 4Cores OS2354WAL4BGD

Socket F Shanghai 2.8G 6M C2 115W OS2387WHP4DGI

Socket F Shanghai 2.9G 6M C2 115W OS2389WHP4DGI

Socket F Shanghai HT3 2.1GHz 6M/C2/60W OS2373NAP4DGI

Socket F Shanghai 2.7G 6M C2 115W OS2384WAL4DGI
