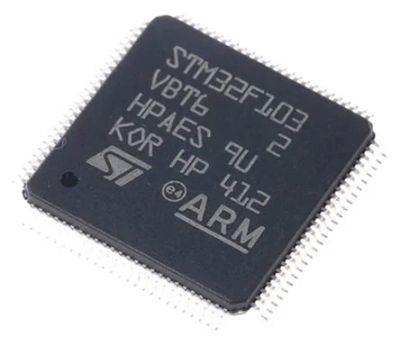

STM32F103VBT6 (ARM, STM, STM32, STM32F103, Cortex-M3)

15 июня 2020 04:18

Возможно, продавец снова выставит его на торги позже. Напишите ему.

Этот лот уже не продается, но мы нашли для вас похожие

Начальная цена

120 руб.

Блиц-цена

200 руб.

Начальная цена

120 руб.

Блиц-цена

200 руб.

Торги завершены(15 июня 2020 04:17)

1 человек минимальное кол-во участников торгов

Описание

Состояние

ARM®32-bit Cortex®-M3 CPU Core
72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
Single-cycle multiplication and hardware division
Memories
128 Kbytes of Flash memory
20 Kbytes of SRAM
Clock, reset and supply management
2.0 to 3.6 V application supply and I/Os
POR, PDR, and programmable voltage detector (PVD)
4-to-16 MHz crystal oscillator
Internal 8 MHz factory-trimmed RC
Internal 40 kHz RC
PLL for CPU clock
32 kHz oscillator for RTC with calibration
Low-power
Sleep, Stop and Standby modes
VBAT supply for RTC and backup registers
2 x 12-bit, 1 μs A/D converters (up to 16 channels)
Conversion range: 0 to 3.6 V
Dual-sample and hold capability
Temperature sensor
DMA
7-channel DMA controller
Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
Up to 80 fast I/O ports
26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Debug mode
Serial wire debug (SWD) & JTAG interfaces
7 timers
Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
16-bit, motor control PWM timer with dead-time generation and emergency stop
2 watchdog timers (Independent and Window)
SysTick timer 24-bit downcounter
Up to 9 communication interfaces
Up to 2 x I2C interfaces (SMBus/PMBus)
Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
Up to 2 SPIs (18 Mbit/s)
CAN interface (2.0B Active)
USB 2.0 full-speed interface
CRC calculation unit, 96-bit unique ID
Packages are ECOPACK®
