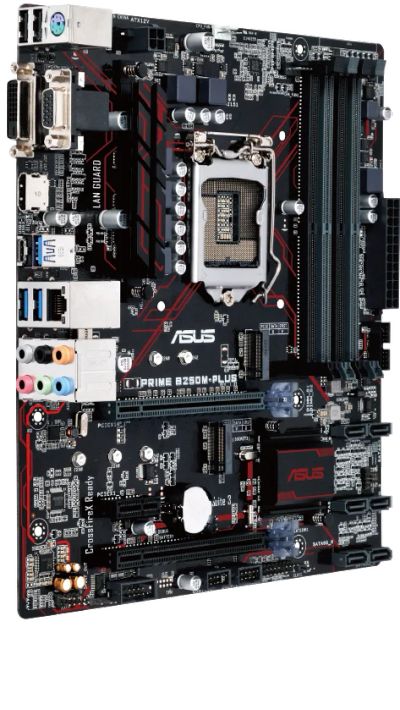

Материнская плата ASUS PRIME B250M-PLUS

Продаю мат. плату ASUS PRIME B250M-PLUS.

Плата использовалась, но всего 2 недели. Так сказать обкатку прошла.

Поддерживаемые процессоры: Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Чипсет: Intel® B250

Оперативная память: 4 x DIMM, Max. 64Гб, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

Двухканальная Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Графика

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/RGB ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Supports up to 3 displays simultaneously

Поддержка технологий Multi-GPU

Supports AMD CrossFireX™ Technology

Слоты расширения

1 x PCIe 3.0/2.0 x16 (x16 mode, (Gray))

1 x PCIe 3.0/2.0 x16 (x4 mode, (Black))

1 x PCIe 3.0/2.0 x1

Хранилище данных

Intel® B250 Chipset :

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)

6 x SATA 6Gb/s port(s), (Gray)

Intel® Optane™ Memory Ready

Локальная сеть

Intel® I219V, 1 x Gigabit LAN Controller(s)

ASUS LAN Guard

Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)

Аудио

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Порты USB

Intel® B250 Chipset :

1 x USB 5Gb/s port(s) port(s) (1 at back panel, , USB Type-CTM, Support 3A power output)

Intel® B250 Chipset :

5 x USB 3.1 Gen 1 port(s) (3 at back panel, (Blue), Type-A, 2 at mid-board)

Intel® B250 Chipset :

6 x USB 2.0/1.1 port(s) (2 at back panel, (Black), 4 at mid-board)

Эксклюзивные особенности

ASUS 5X Protection III :

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: 6 Phase digital power design

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- ESD Guards

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 2+

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

- ASUS Q-Slot

- ASUS Q-DIMM

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Разъемы на задней панели

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output )

3 x USB 3.1 Gen 1 ((Blue)) Type-A

2 x USB 2.0

6 x Audio jack(s)

Разъeмы на плате

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (2 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

Аксессуары

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

2 x M.2 screws

1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Администрированиe

WfM 2.0, DMI 3.0, WOL by PME, PXE

Диск с драйверами

Drivers

ASUS Utilities

ASUS EZ Update

Anti-virus software (OEM version)

Операционная система

Windows® 10 64-bit

Windows® 8.1 64-bit *4

Windows® 7 32-bit *4

Windows® 7 64-bit *4

Форм-фактор

mATX Form Factor

9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )
