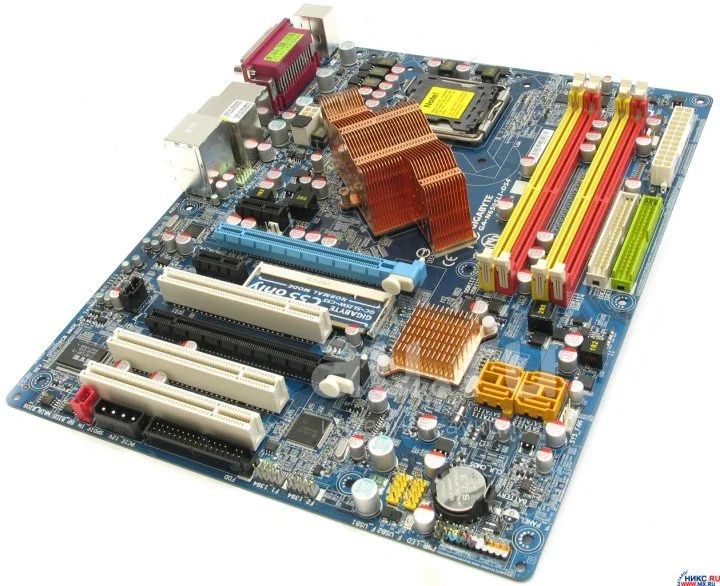

Gigabyte GA-N650SLI-DS4 + Pentium E5200 + задняя планка

Подробное описание https://www.gigabyte.com/Motherboard/GA-N650SLI-DS4-rev-10#ov Поддерживает некоторые Ксеоны, у меня работала с Xeon E5450 (так же у одного из пользователей данного ресурса такая же материнка работала с таким же процессором), прошита под ксеоны, можно включить и проверить. Поддерживает НЕ все ксеоны. Продается с процессором Intel® Pentium® Processor E5200, задняя планка в комплекте, могу доукомплектовать боксовым кулером.

Характеристики материнской платы:

CPU

1. LGA775
2. Support Intel® Core™ 2 Quad/Core™ 2 Duo/Pentium® D/Pentium® 4 Processor
3. Supports 1333/1066/800 MHz FSB

Chipset

1. NVIDIA® nForce 650i SLI (Northbridge: C55, Southbridge: MCP51)
2. Onboard Marvell 88E1116 phy (10/100/1000 Mbit)
3. Onboard Realtek ALC888 chip
4. Onboard T.I. TSB43AB23 1394 chip

Memory

1. 4 DDRII DIMM memory slots (supports up to 8 GB memory)(Note 1)
2. Supports dual channel DDRII 800/667/533 unbuffered DIMMs
3. Supports 1.8V DDRII DIMMs

(Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4 GB of physical memory is installed, the actual memory available for the operating system will be less than 4 GB; Windows 64-bit operating system doesn't have such limitation.

Expansion Slots

1. 2 PCI Express x16 slots (Note 2)
2. 2 PCI Express x1 slots
3. 3 PCI slots

(Note 2) In SLI Mode, the two PCIE x16 slots can run at up to x8 respectively. In Normal Mode, only the first PCIE x 16 slot (PCIE_16_1) is available and can run at up to x16.

Internal I/O Connectors

1. 1 24-pin ATX power connector
2. 1 8-pin ATX 12V power connector
3. 1 floppy connector
4. 2 IDE connectors
5. 4 SATA 3Gb/s connectors
6. 1 CPU fan connector
7. 1 system fan connector
8. 1 North Bridge fan connector
9. 1 power fan connector
10. 1 front panel connector
11. 1 front audio connector
12. 1 CD In connector
13. 1 S/PDIF In connector
14. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
15. 2 IEEE 1394a connectors for additional 2 ports by cables
16. 1 power LED connector
17. 1 Chassis Intrusion connector

Back Panel Connectors

1. 1 PS/2 keyboard port
2. 1 PS/2 mouse port
3. 1 S/PDIF Out connection (coaxial+optical)
4. 1 parallel port
5. 1 serial port
6. 4 USB 2.0/1.1 ports
7. 1 IEEE 1394a port
8. 1 RJ-45 port
9. 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU warning temperature
5. CPU/System/Power fan failure warning
6. CPU/System Smart Fan Control

BIOS

1. 2 4 Mbit flash ROM
2. Use of licensed AWARD BIOS
3. Supports Dual BIOS
4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

Form Factor

1. ATX
2. 30.5cm x 24.4cm

Other Features

1. Supports @BIOS
2. Supports Download Center
3. Supports Q-Flash
4. Supports EasyTune (Note 3)
5. Supports Xpress Install
6. Supports Xpress Recovery2
7. Supports Xpress BIOS Rescue

Характеристики процессора:

# of Cores 2

Processor Base Frequency 2.50 GHz

Cache 2 MB L2

Bus Speed 800 MHz FSB

FSB Parity No

TDP 65 W
