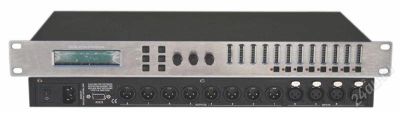

Цифровая сиcтема управления громкоговорителями DSP408(4-input,8-output)

Аналог XTA DP448 - 4 входа, 8 выходов системный контроллер цифровой кроссовер и процессор АС (4 входа, 8 выходов).
FEATURES:
DSP-Based Speaker Processor,
High Performance AKM A/D Ak5392
3pcs 24 bit High Precision DSP
Low Distortion, High Dynamic,
Frequency Response: 20Hz~20kHz
4 Inputs, 8 Outputs, 10 Configure Preset Modes,
All Presets Parameters Adjustable.
Input Gain and Independent Crossover Control on Each
Input Channel.
5 Bands Parametric Equalizer
Max 7ms delay per output
RS232 Interface Control, PC Software Included
360 (ISO) Frequency Points for Each Group PEQ.
Each Group Q Value is from 0.5 to 128 with Hi_shelf and
Lo_shelf Function.
Independent Limiter with Attack Time, Hold Time,
Decay Time and Threshold Parameters.
High Pass, Low Pass on Each Channel Configured with 6dB,12dB,18Db,24dB,48dB Butterworth,Linkwitz Riley
Bessel Frequency Response Curve
Switch power supply: 90-240V
2x20 Characters LCD with Backlight

SPECIFICATIONS:
Input
Impedance: 10 K
CMRR:>50 dB
Output
Impedance: <50
Max output electrical level: Vpp=4V(Balanced),
Vpp=7.6V(Unbalanced)
Frequency response: 20Hz-20KHz
Dynamic range
Distortion: 0.01%(THD)
Max delay: 7ms
Output gain: -40dB«+6dB 0.5dB
Input gain: -40dB«+6dB 0.5dB
Parametric Equalizer
Filter
Gain: 12dB in 0.1 dB steps
Central frequency: 20Hz-20KHz360 ISO
Q value: 0.5-128
Shelving
Lo-shelf: 20Hz-1KHz
Hi-shelf: 1KHz-20KHz
Shelf gain: 12dB in 0.1 dB steps
HPF&LPF
Filter
Frequency(High pass):10Hz-16KHz
Frequency(Low pass):35Hz-22KHz
Response Curve:
Butterworth 6 dB, 12 dB ,18 dB, 24 dB, 48 dB
Bessel 12 dB ,18 dB, 24 dB, 48 dB
Linkwitz-Riley 24 dB, 48 dB

Limiter
Level:-20dB +15dB
Attach time:1-100ms
Holding time: 0-100ms
Decay time:10-1000ms
LCD:2X20
Input LED: -30 dB, -24 dB, -12 dB, -6 dB, -3 dB,Limit,Clip
Output LED: -30 dB, -24 dB, -12 dB, -6 dB, -3 dB,Limit,Clip
Connectors
Input:XLR-3F
Output: XLR-3M
RS232
Power:90-240V/AC50Hz
Weight: 3.6 KG
Size: 480x44x220mm
