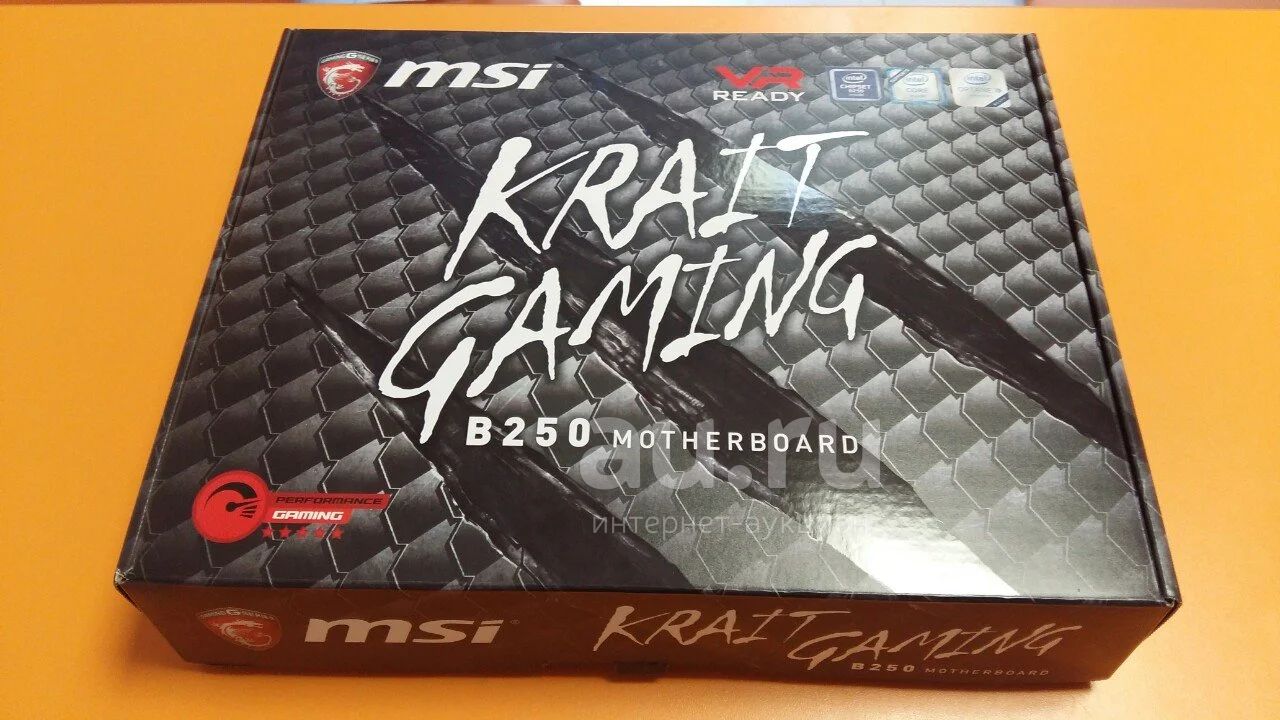

Материнская плата socket 1151 LGA1151 MSI B250 KRAIT GAMiNG + процессор Intel Celeron G3930. Процессор и кулер в комплекте. Протестирована. Отправляем в регионы.

Dbn

CPU

• Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

* This function will be supported depend on the CPU.

Chipset

• Intel® B250 Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 64GB

- 7th Gen processors support DDR4 2400/ 2133 MHz*

- 6th Gen processors support DDR4 2133 MHz*

• Dual channel memory architecture

• Supports Intel® Extreme Memory Profile (XMP)

* Please refer www.msi.com for more information on compatible memory.

* DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6th Gen processors on XMP mode.

Slots

• 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)

• 3 x PCIe 3.0 x1 slots

* The PCI_E4 slot will be unavailable when an M.2 PCIe SSD module has been installed in the M2_2 slot.

** The PCI_E2/ PCI_E5 slot will be unavailable when an expansion card has been installed in the PCI_E3/ PCI_E6 slot.

Onboard Graphics

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th Gen CPU), 4096x2160@24Hz(6th Gen CPU), 2560x1600@60Hz

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology

Storage

• Intel® B250 Chipset

• 6x SATA 6Gb/s ports*

• 2x M.2 slots (Key M)

- Support up to PCIe 3.0 x4 and SATA 6Gb/s

- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**

- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices

- M2_2 slot supports 2242/ 2260 /2280 storage devices

- Intel® Optane™ Memory Ready for M2_2 slot***

• Supports Intel® Smart Response Technology for Intel Core™ processors

* M.2 and SATA ports combination details please refer user manual.

** The Turbo U.2 Host Card is not included, please purchase separately.

*** Intel® Optane™ Technology is only supported when using 7th Gen processors. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

• ASMedia® ASM2142 Chipset

- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel

- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

• Intel® B250 Chipset

- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Realtek® ALC892 Codec

- 7.1-Channel High Definition Audio

- Supports S/PDIF output

LAN

• 1 x Intel® I219-V Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 6 x SATA 6Gb/s connectors

- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 1 x 4-pin CPU fan connector

- 1 x 4-pin water pump fan connector

- 4 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x RGB LED connector

- 1 x TPM module connector

- 1 x Chassis Intrusion connector

- 1 x Serial port connector

- 1 x Parallel port connector

- 1 x Clear CMOS jumper

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port

- 2 x USB 2.0 Type-A ports

- 1 x DVI-D port

- 1 x USB 3.1 Gen2 Type-A port

- 1 x USB 3.1 Gen2 Type-C port

- 2 x USB 3.1 Gen1 Type-A ports

- 1 x HDMI™ port

- 1 x LAN (RJ45) port

- 5 x OFC audio jacks

- 1 x Optical S/PDIF OUT connector

Dimension

12 in. x 9.6 in. (30.4 cm x 24.3 cm)

• ATX Form Factor

Mounting

• 9 mounting holes
