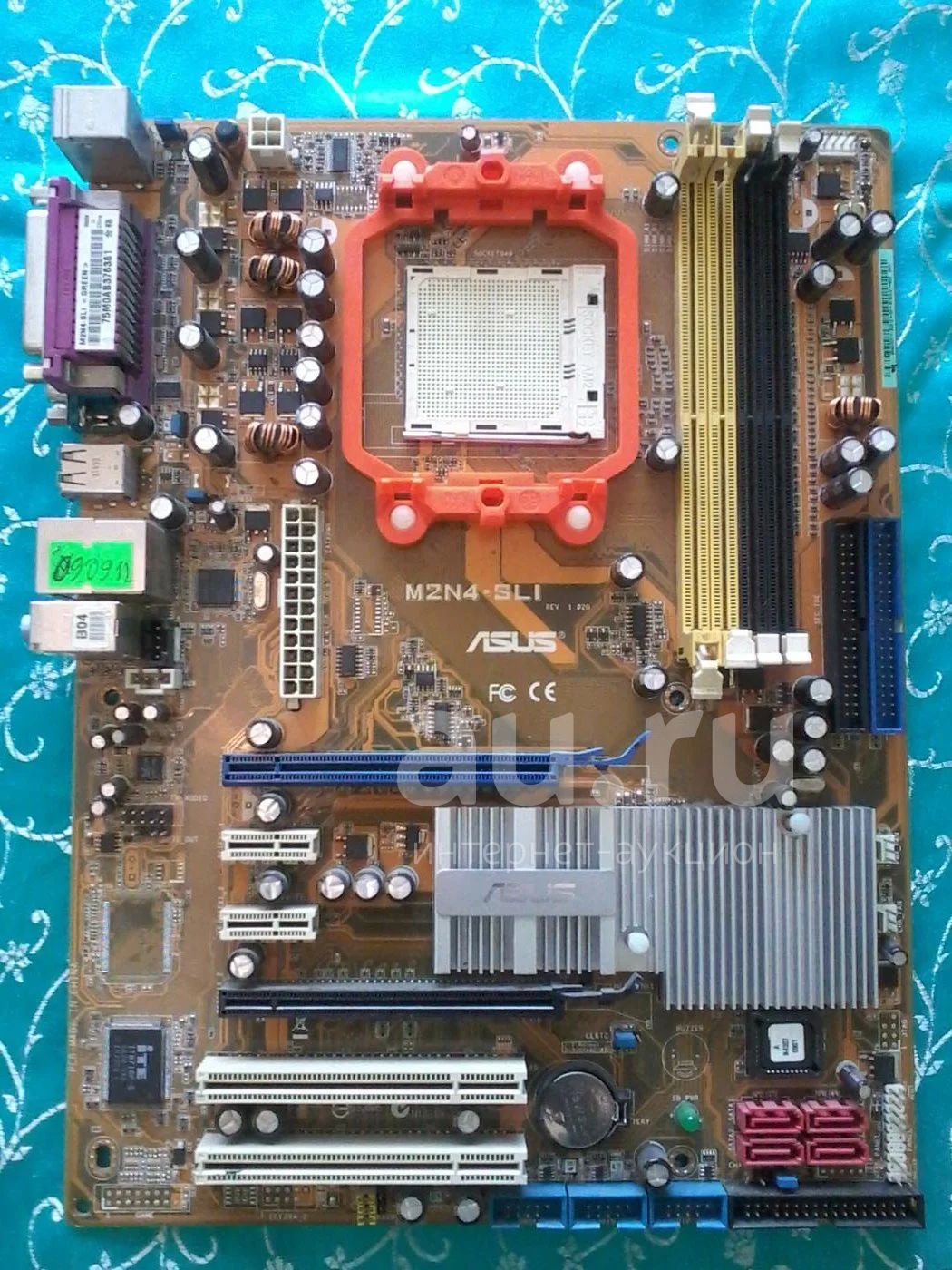

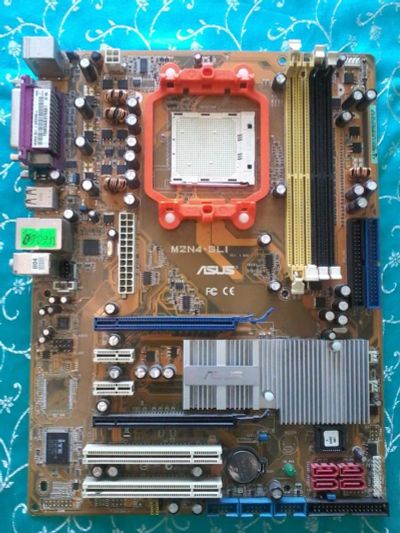

Mainboard Asus M2N4-SLI

Иногда появляется перегрев процессора. Возможно поможет термопаста, не проверял.

Хорошо работало с ОС РОСА Линукс и Астра Линукс.

Тех. характеристики:

https://www.asus.com/ru/Motherboards/M2N4SLI/specifications/

CPU Support AMD® Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron

AMD Cool'n'Quiet™ Technology

AMD64 architecture enables simultaneous 32-bit and 64-bit computing

AMD Live!™ Ready

Chipset

NVIDIA nForce®4 SLI™ MCP

Core Logic

2000 / 1600 MT/s

Front Side Bus

2000 / 1600 MT/s

Memory

Dual channel memory architecture

4 x DIMM, max. 8GB, DDR2-800/667/533, ECC and non-ECC, un-buffered memory

Expansion Slots

2 x PCI Express x16 slot with NVIDIA® SLI™ technology support, at x8, x8 speed

2 x PCI Express x1

2 x PCI 2.2

SLI

Support two identical NVIDIA SLI-Ready graphics cards (both at x8 mode)

ASUS two-slot thermal design

Storage

NVIDIA nForce®4 SLI™ MCP supports:

* 2 x Ultra DMA 133 / 100 / 66 / 33

* 4 x Serial ATA 3.0Gb/s

*Supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives

LAN

NVIDIA nForce®4 SLI™ MCP built-in Gigabit MAC with external Attansic PHY

Support TCP/IP Acceleration

Audio

Realtek ALC850, 6-ch AC'97 CODEC

Jack Sensing and Enumeration

S/PDIF out interface

USB

Max. 10 x USB2.0 ports

Overclocking Features

AI Overclocking (intelligent CPU frequency tuner)

SFS (Stepless Frequency Selection): allowing FSB tuning from 200MHz up to 400MHz at 1MHz increment

ASUS C.P.R.(CPU Parameter Recall)

Adjustable FSB/DDR2 ratio. Fixed PCI/PCIe frequencies.

Special Features

ASUS EZ DIY:

* ASUS CrashFree BIOS3

* ASUS EZ Flash2

* ASUS Q-Connector

ASUS Q-Fan 2

ASUS MyLogo2

Back Panel I/O Ports

1 x PS/2 Keyboard port

1 x PS/2 Mouses

1 x LAN (RJ45) port

4 x USB 2.0/1.1 ports

1 x SPDIF Out

1 x Parallel (Printer Port)

1 x COM port

6-channel Audio ports

Internal I/O Connectors

3 x USB 2.0 connectors supports additional 6 USB 2.0 ports

1 x Floppy disk drive connector

2 x IDE connector for four devices

4 x SATA connectors

1 x CPU / 1 x Chassis / 1 x Power Fan connectors

1 x S/PDIF output connector

Front Panel Audio connector

AUX audio in

CD audio in

24-pin ATX Power connector

4-pin ATX 12V Power connector

System panel connector

BIOS

4Mb AWARD BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3

Manageability

WOL by PME, WOR by PME,Chassis Intruction, PXE

Accessories

1 x SLI bridge

1 x UltraDMA 133/100/66 cable

1 x Floppy disk drive cable

2 x SATA cables

1 x SATA power cable for 2 devices

1 x I/O Shield

1 x ASUS Q-Connector Kit(USB, System panel;Retail version only)

ATX Form Factor, 12"x 9" (30.5cm x 22.8cm)
