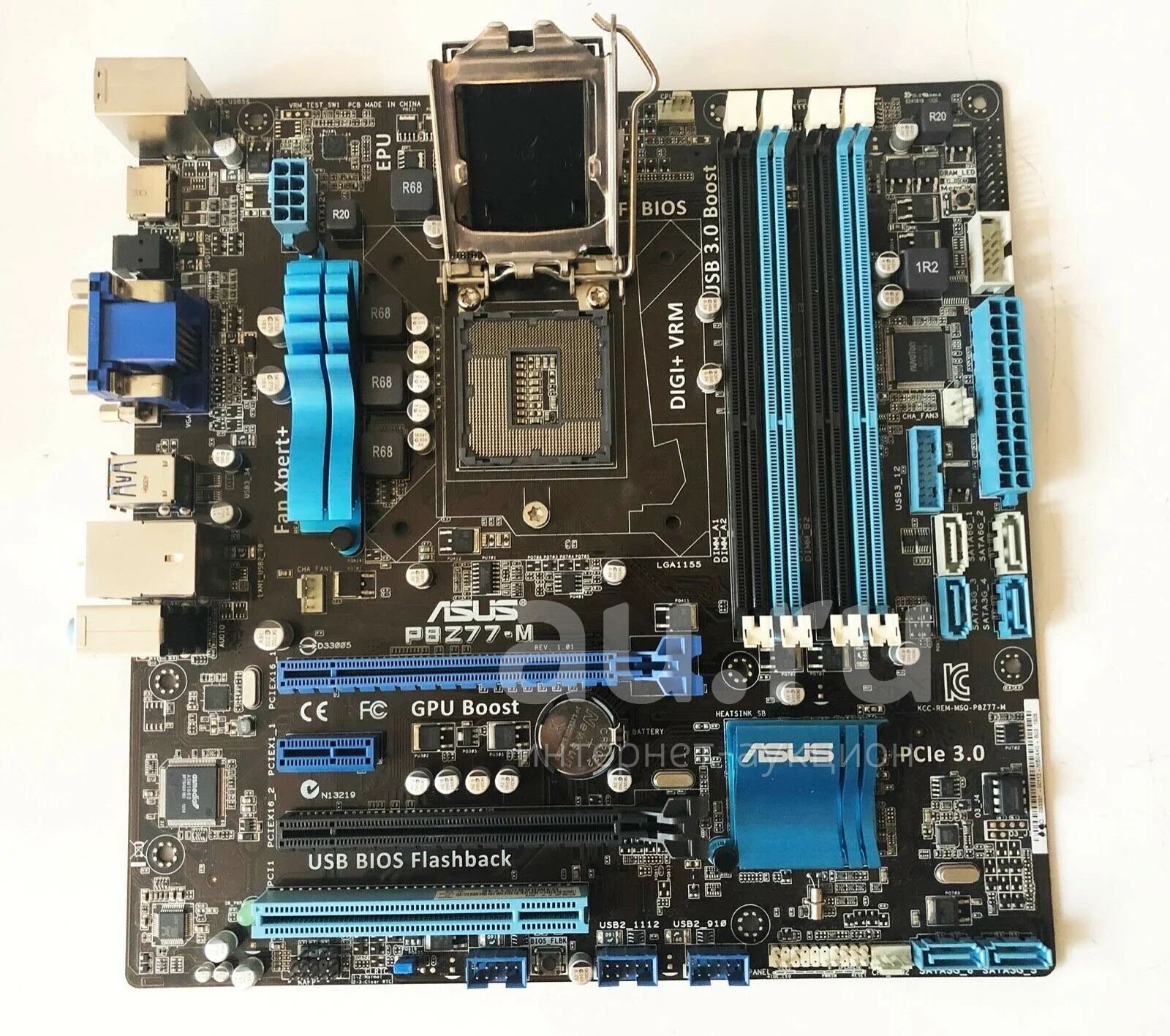

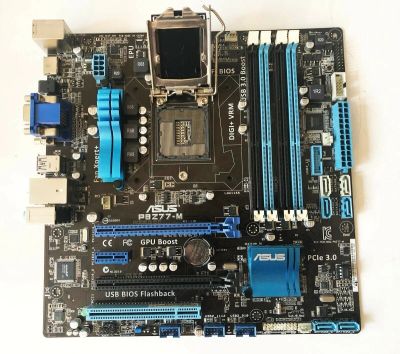

comp.mb.#16 ASUS P8Z77-M + VGA + DVI Socket 1155 Motherboard LGA1155

• Процессор
• Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
• Supports Intel® 22 nm CPU
• Supports Intel® 32 nm CPU
• Supports Intel® Turbo Boost Technology 2.0
• * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• Чипсет
• Intel® Z77
• Оперативная память
• 4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• *Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• Supports Intel® Extreme Memory Profile (XMP)
• Графика
• Integrated Graphics Processor
• Multi-VGA output support : HDMI/DVI/RGB ports
• - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
• Maximum shared memory of 1696 MB
• Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Поддержка технологий Multi-GPU
• Supports AMD CrossFireX™ Technology
• Supports LucidLogix® Virtu™ MVP Technology *1
• Слоты расширения
• 1 x PCIe 3.0/2.0 x16 *2
• 1 x PCIe 2.0 x16 (x4 mode, (Black))
• 1 x PCIe 2.0 x1
• 1 x PCI
• Хранилище данных
• Intel® Z77 chipset :
• 2 x SATA 6Gb/s port(s), (Gray)
• 4 x SATA 3Gb/s port(s), (Blue)
• Support Raid 0, 1, 5, 10
• Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
• Локальная сеть
• Realtek® 8111F, 1 x Gigabit LAN Controller(s)
• Аудио
• Realtek® ALC887 8-Channel High Definition Audio CODEC
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Audio Feature :
• - Optical S/PDIF out port(s) at back panel
•

• Порты USB
• Intel® Z77 chipset : *5
• 4 x USB 3.1 Gen 1 port(s) (2 at back panel, (Blue), 2 at mid-board)
• Intel® Z77 chipset :
• 10 x USB 2.0 port(s) (4 at back panel, (Black), 6 at mid-board)
• Разгонные функции
• Overclocking Protection :
• - ASUS C.P.R.(CPU Parameter Recall)
•

• Разъемы на задней панели
• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.1 Gen 1
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 3 x Audio jack(s)
•

• Разъeмы на плате
• 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x TPM connector(s)
• 1 x COM port(s) connector(s)
• 2 x SATA 6Gb/s connector(s)
• 4 x SATA 3Gb/s connector(s)
• 1 x CPU Fan connector(s) (4 -pin)
• 3 x Chassis Fan connector(s) (4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector)
• 1 x MemOK! button(s)
• 1 x Clear CMOS jumper(s)
• 1 x USB BIOS Flashback button(s)

Материнские платы в наличии

==========================

Возможна демонстрация работоспособности при покупке
